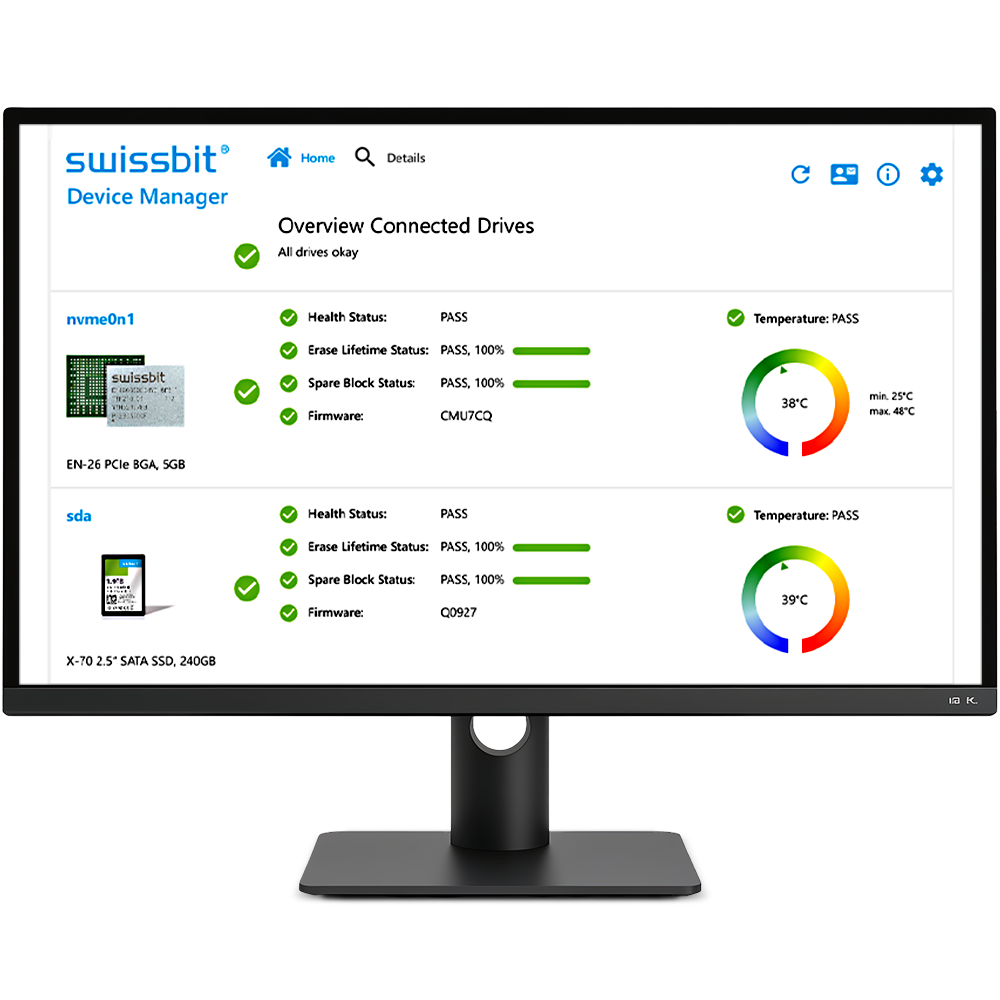

Swissbit Device Manager Tool
- Shows critical device health data in an user friendly app
- Visualization and accessibility of key telemetry data
- Common interface for any Swissbit storage product
- Identify need for maintenance and service
- Reduces machine down time and field failure costs
- Increases system reliability
Swissbit Device Manager Tool
- Supports Swissbit CFC, SD, microSD, e.MMC, USB, and SSD products
- General device information, e.g. ATA model ID, serial number, firmware version
- Spare Blocks statistics (including number at time of production and current)
- Usage statistics (NAND Flash erase cycles)
- Various ECC / CRC counters
- History of all values is recorded per device
The Swissbit Device Manager (SBDM) for Windows and Linux is a utility program that reads status information from Swissbit products. It uses S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) and USB vendor specific commands to gather detailled lifetime information. The tool can be used to extrapolate the life time expectation of a product in a real application by taking two snapshots before and after the test and evaluating the consumption through the test phase.
The SBDM software supports only Swissbit devices of the following product lines:
- CompactFlash: C-3x (SMART capable only), C-4x, C-5x
- SSD SATA: X-1x, X-2x, X-5x, X-6x, X-7x, X-8x
- CFast: F-1x, F-2x, F-5x, F-6x, F-8x
- USB: U-1x, U-4x, U-5x
- SD: S-2x (support for Linux native SD interface only), S-4x, S-5x, S-6x
- eMMC: EM-2x, EM-3x (all support for Linux native MMC interface only)
- NVMe: N-1x, EN-2x, N-2x, G-2x, N-3x, N3x, N4x, N5x, D1x
The SBDM software supports following operating systems:
- Windows-x86 32-bit version (Windows 7 and higher, Admin rights needed)
- Windows-x64 64-bit version
- Linux i386 x86 32-bit architecture
- Linux x86-64 x86 64-bit architecture (amd64)
- Linux-aarch64 aarch (armv8 64-bit) ARM architecture
- Linux-armhf armhf (armv7 32-bit) ARM architectures
