Equally to the SATA 2.5" drives, the Swissbit M.2 SSDs target embedded applications which require solid state storage in small, removable form factors. The SSD modules are designed for robustness against frequent temperature changes within the -40˚C to 85˚C range, withstand high shock and vibration and offer superior performance and endurance. The MLC and TLC NAND Flash based series X1000, X-75m2, and X-60m2 target different use cases including OS booting, data logging, surveillance recording or vaulting.

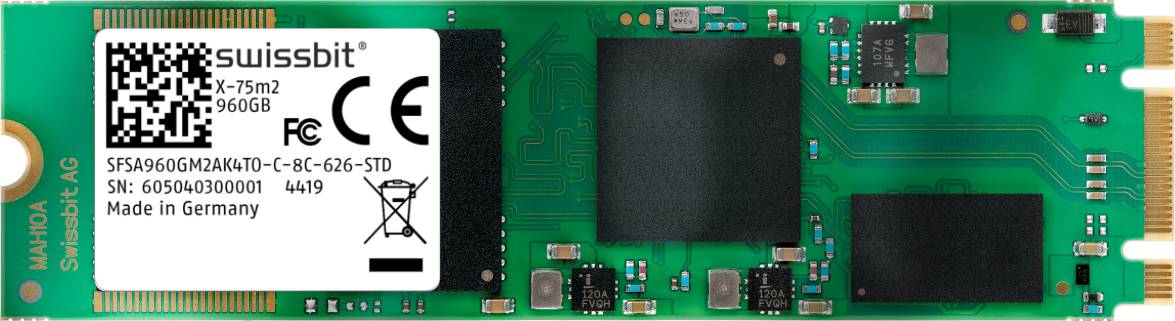

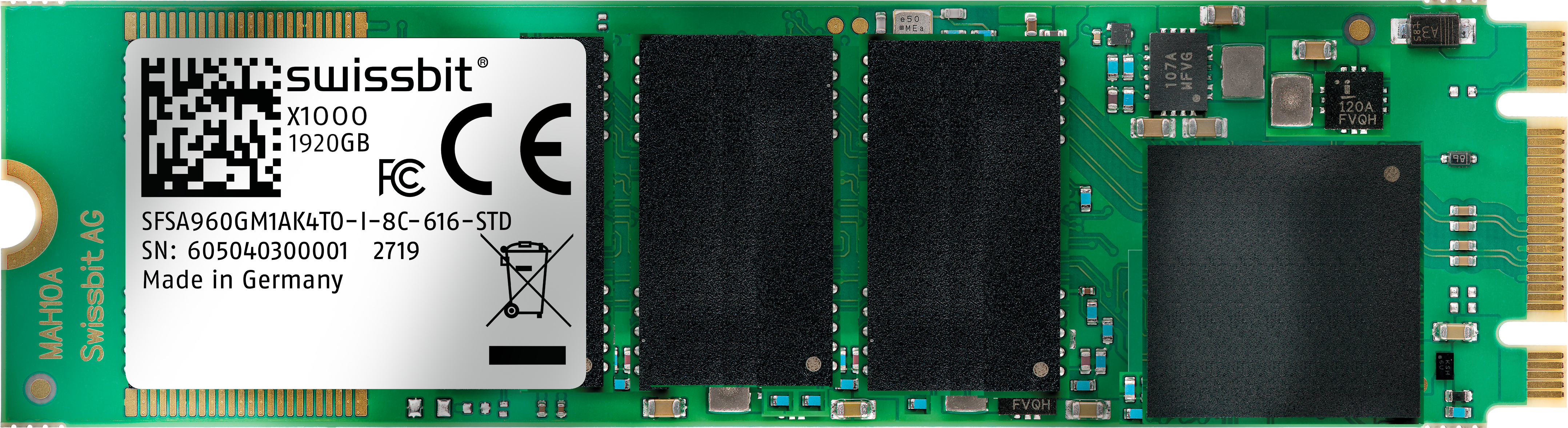

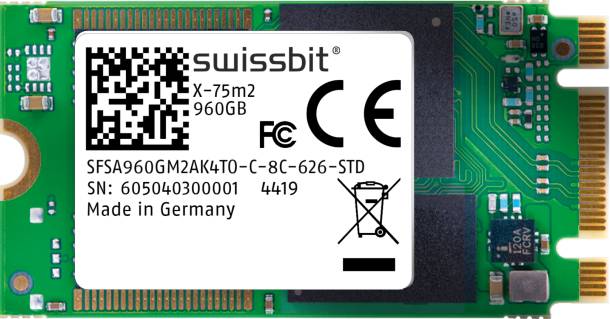

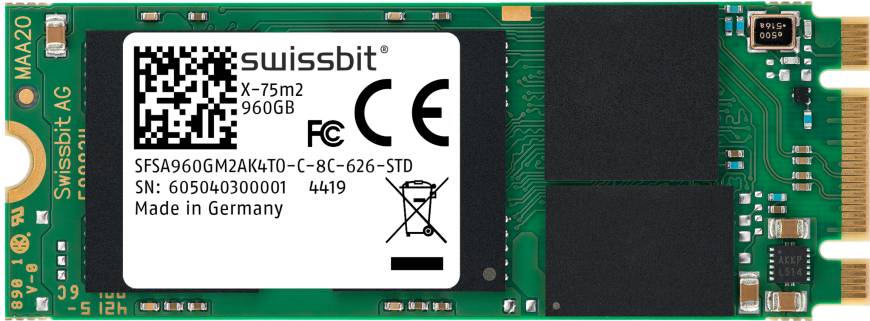

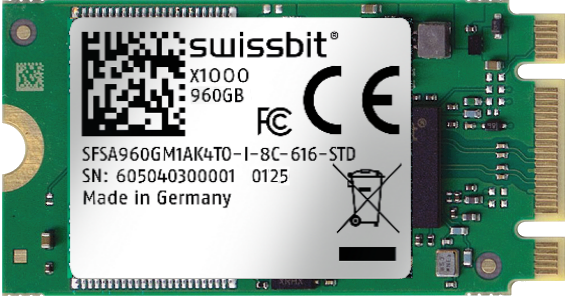

| X-75m2 (2280) P | X-75m2 (2280) | X-75m2 (2242) | X-60m2 (2280) | X-60m2 (2260) | X1000 (2280) | X1000 (2242) | |
|---|---|---|---|---|---|---|---|
| Series Name | X-75m2 P | X-75m2 | X-75m2 | X-60m2 | X-60m2 | X1000 | X1000 |
| Standards / Compliance | SATA Gen 3 | SATA Gen 3 | SATA Gen 3 | SATA Gen 3 | SATA Gen 3 | SATA Gen 3 | SATA Gen 3 |
| Interface / Protocol | ATA-8 | ATA-8 | ATA-8 | ATA-8 | ATA-8 | ATA-8 | ATA-8 |
| Data Transfer Mode | 6 Gbit/s | 6 Gbit/s | 6 Gbit/s | 6 Gbit/s | 6 Gbit/s | 6 Gbit/s | 6 Gbit/s |
| Connector | 75 pos. Edge Connector
B & M key | 75 pos. Edge Connector
B & M key | 75 pos. Edge Connector
B & M key | 75 pos. Edge Connector
B & M key | 75 pos. Edge Connector
B & M key | 75 pos. Edge Connector
B & M key | 75 pos. Edge Connector
B & M key |
| Outline Dimensions (LxWxH) | 22 x 80 x 3.6 mm | 22 x 80 x 3.6 mm | 22 x 42 x 3.6 mm | 22 x 80 x 3.6 mm | 22 x 60 x 3.6 mm | 22 x 80 x 3.6 mm | 22 x 42 x 3.6 mm |
| Flash Type | 3D NAND TLC | 3D NAND TLC | 3D NAND TLC | MLC | MLC | 3D NAND TLC | 3D NAND TLC |
| Density Range | 120-1,920 GB | 30-1,920 GB | 30-960 GB | 30-960 GB | 30-480 GB | 240 – 1,920 GB | 240 – 960 GB |
| DRAM | DRAM cache | DRAM cache | DRAM cache | DRAM cache | DRAM cache | ||
| Endurance [DWPD] Client WL or Random 128K | max 1.9 | max 1.9 | max 1.9 | 2.0 | 2.0 | ||
| Data Retention | 10 years @ life begin
1 year @ life end | 10 years @ life begin
1 year @ life end | 10 years @ life begin
1 year @ life end | 10 years @ life begin
1 year @ life end | 10 years @ life begin
1 year @ life end | 10 years @ life begin
1 year @ life end | 10 years @ life begin
1 year @ life end |
| Operating Temperature (ambient) | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C | Industrial: -40°C to +85°C | Industrial: -40°C to +85°C |
| Storage Temperature | -40°C to + 85°C | -40°C to + 85°C | -40°C to + 85°C | -40°C to + 85°C | -40°C to + 85°C | -40°C to + 85°C | -40°C to + 85°C |
| MTBF | ≥ 2,000,000 hours | ≥ 2,000,000 hours | ≥ 2,000,000 hours | ≥ 2,000,000 hours | ≥ 2,000,000 hours | ≥ 2,000,000 hours | ≥ 2,000,000 hours |
| Data Reliability | < 1 sector per 10^16 bits | < 1 sector per 10^16 bits | < 1 sector per 10^16 bits | < 1 sector per 10^16 bits | < 1 sector per 10^16 bits | < 1 sector per 10^16 bits | < 1 sector per 10^16 bits |
| Shock | 1,500G, 0.5 ms | 1,500G, 0.5 ms | 1,500G, 0.5 ms | 1,500G, 0.5 ms | 1,500G, 0.5 ms | 1,500G, 0.5 ms | 1,500G, 0.5 ms |
| Vibration | 50 G, 80-2,000 Hz | 50 G, 80-2,000 Hz | 50 G, 80-2,000 Hz | 50 G, 80-2,000 Hz | 50 G, 80-2,000 Hz | 50 G, 80-2,000 Hz | 50 G, 80-2,000 Hz |
| Humidity | 85 % RH 85°C, 1,000 hrs | 85 % RH 85°C, 1,000 hrs | 85 % RH 85°C, 1,000 hrs | 85 % RH 85°C, 1,000 hrs | 85 % RH 85°C, 1,000 hrs | 85 % RH 85°C, 1,000 hrs | 85 % RH 85°C, 1,000 hrs |
| Voltages | 3.3 V ± 5 % | 3.3 V ± 5 % | 3.3 V ± 5 % | 3.3 V ± 5 % | 3.3 V ± 5 % | 3.3 V ± 5 % | 3.3 V ± 5 % |
| Average Power | 2.0 W | 2.7 W | 2.7 W | 2.5 W | 2.5 W | 2.7 W | 2.7 W |
| Features & Tools | NCQ, TRIM
E2E Data Protection | NCQ, TRIM
E2E Data Protection | NCQ, TRIM
E2E Data Protection | NCQ, TRIM
AES 256 Encryption optional | NCQ, TRIM
AES 256 Encryption optional | FW based Power Fail | FW based Power Fail |
| Sequential Read (MB/s) | up to 560 | up to 565 | up to 565 | up to 520 | up to 520 | up to 520 | up to 520 |
| Sequential Write (MB/s) | up to 500 | up to 495 | up to 495 | up to 460 | up to 460 | up to 500 | up to 500 |
| Random 4KB Read (IOPS) | up to 77,700 | up to 77,200 | up to 77,200 | up to 75,000 | up to 75,000 | up to 81,000 | up to 81,000 |
| Random 4KB Write (IOPS) | up to 73,600 | up to 79,400 | up to 79,400 | up to 75,000 | up to 75,000 | up to 70,000 | up to 70,000 |
