iShield Camera
Reliable Encryption and Access Protection of Video and Photo Data
The microSD card iShield Camera is a simple and retrofittable security solution especially for the encryption and access protection of video recordings. It is host-independent, i.e. plug-and-play, and can be used with a large number of camera types. The solution also includes the “iShield Camera Card Tool” (iCCT) software.
iShield is the Swissbit product family brand for plug-and-play security products.

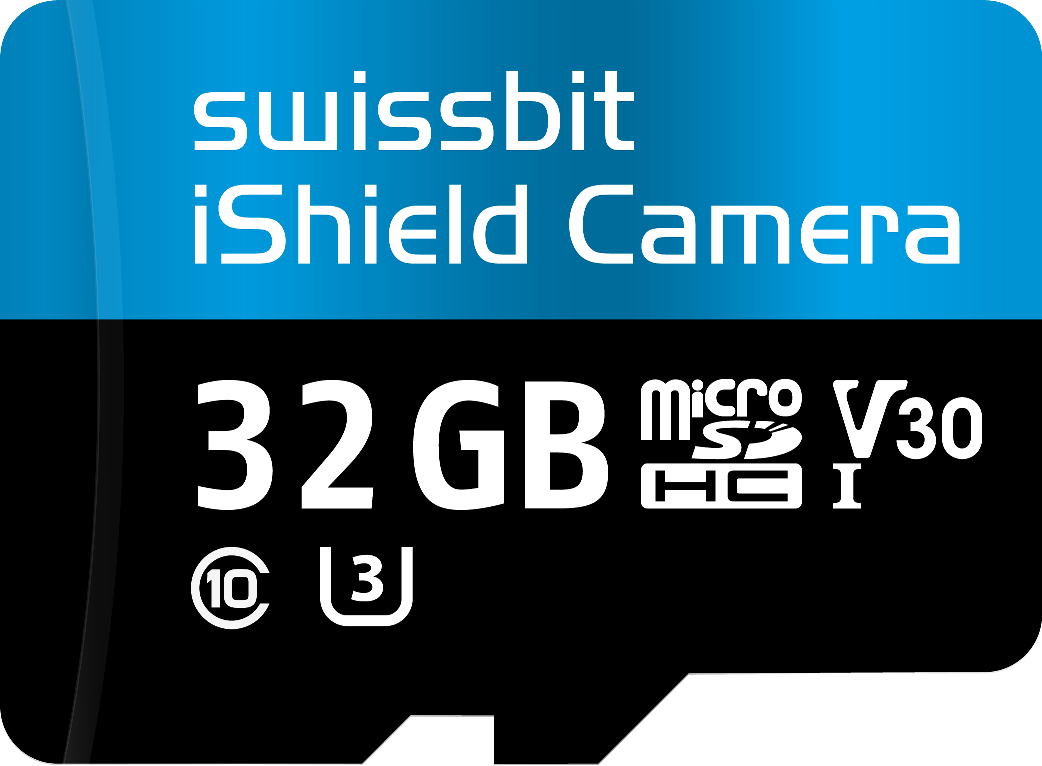

iShield Camera microSD card
- Host-agnostic plug-and-play solution for protecting data recorded on common cameras
- Intended usage: drone camera, body camera, professional photography (DSLR), dash cam, surveillance camera, action camera, trap camera, and more.
- Hardware encryption (AES 256bit) and access protection integrated on the memory card
- Supports loop recording without host modification
- Comes with user-friendly management tool (Windows10, macOS, Linux)
Key Features
- Encryption: AES 256 bit
- User authentication: configurable PIN
- High performance for full HD video support (UHS-I, speed class 10)
- Lifetime: 3.000 overwrite cycles for video recording (85 TBW @32GB)
- Data retention (with non-powered storage): 10 years
- Industrial Temp (-40…85°C)
- FAT32 formatted
- Windows 10, MacOS and Linux are supported
Key Applications
- Drone camera (e.g. DJI, Sensefly), body camera, professional photography (DSLR), dash cam (e.g. WDR, Mio, VanTrue), surveillance camera, action camera, camera traps (e.g. Apeman, Reconyx, Browning), and more
- Access protection of video and photo recordings on microSD card
- Encryption of video and photo recordings on microSD card
Key Benefits
- Pluggable: Ideal for retrofitting existing system
- Easy-to-use: Plug-and-play card for video recording systems without host modification
- Cost efficient: Integration of security solution without installation effort
|
Series Name |
iShield Camera |
|
Capacities |
16 GBytes, 32 GBytes |
|
Form Factor |
Standard microSD Memory card form factor - 15.0mm x 11.0mm x 0.7mm (1.0mm) |
|
Compliance |
Fully compliant with SD Memory Card specification 2.0 and 3.0 and microSD Memory Card Addendum 4.00 |
|
Performance |
|
|
Operating Temperature Range |
Industrial: -40 °C to 85 °C |
|
Operating Voltage |
2.7…3.6V normal operating voltage (Low-power CMOS technology) |
|
Data Retention |
10 Years @ Life Begin / 1 Year @ Life End |
|
Endurance @ Max Capacity |
85 TBW (TeraBytes Written) |
|
Type |
Maker | Model | Test Date | Camera Firmware | Compatibility |
|
Drone |
DJI | Mini 1 / Mini 2 | 26.04.2022 | ||
|
Drone |
DJI | Mavic 2 Pro / Zoom | 08.03.2021 | 01.00.0670 | Full compatible up to 3840x2160@24fps |
|
Drone |
DJI |
Mavic Air 1 / Air 2 / Air 2S |
26.04.2022 |
|
Fully compatible |
|
Drone |
DJI |
Mavic 2 Enterprise Zoom / Dual |
26.04.2022 |
|
Fully compatible |
|
Drone |
DJI |
Mavic 2 Enterprise Advanced |
26.04.2022 |
|
Fully compatible; please note, that only video or photo be recorded without the option of taking photo while recording a video |
|
Drone |
DJI |
Smart Controller |
26.04.2022 |
|
Fully compatible; please note: storage location must be set once to external microSD - so that all data is recorded in encrypted mode |
|
Drone |
DJI |
Smart Controller Enterprise |
26.04.2022 |
|
Fully compatible; please note:storage location must be set once to external microSD - so that all data is recorded in encrypted mode |
|
Drone |
DJI |
Matrice 210 serie with Zenmuse Z30 / X5S / XT2 |
26.04.2022 |
|
Fully compatible |
|
Drone |
DJI |
Matrice 300 series withZenmuse H20 / H20T |
26.04.2022 |
|
Fully compatible |
|
Drone |
Sensefly |
S.O.D.A. |
01.03.2021 |
V1.3.0 |
Fully compatible |
|
Dashcam |
WDR |
Full HD 1080p |
17.02.2021 |
V1 |
Fully compatible |
|
Dashcam |
Mio |
MiVue |
17.02.2021 |
2015 |
Fully compatible |
|
Dashcam |
VanTrue |
N2 Pro |
24.02.2021 |
VTN2Pro0D.V38 |
Fully compatible |
|
Dashcam |
iTracker |
GS6000-A12 | 23.02.2021 |
ITR3H2HWCS2DGE. 20181221.V1 |
Partly compatible: Card is working fine with active security; incompatibility warning can be ignored |
|
Action Cam |
Apeman |
Action Camera |
22.02.2021 |
|
Partly compatible: SD card need to be formatted |
|
Action Cam |
Akaso |
V50 Elite |
22.02.2021 |
|
Incompatible: but possible as customer specific non-UHS product variant (on request) |
|
Photo Camera |
Nikon |
D7100 |
17.02.2021 |
V1.04 |
Fully compatible |
|
Trail Cam |
Apeman |
Trail Camera |
17.02.2021 |
V2.2.0 |
Fully compatible |
|
Trail Cam |
Reconyx |
Hyperfire 2 |
17.02.2021 |
1.4.20180824a |
Fully compatible |
|
Trail Cam |
Browning |
Recon Force Elite HP4 |
08.04.2021 |
BTC7EH4_K12031F |
Fully compatible |
|
Trail Cam |
Wildlife Monitoring Solutions |
4.0CG-R |
08.04.2021 |
5.5.9 |
Compatible except 4G function, it will be fixed soon |
| Time Lapse Camera |
Brinno |
TLC200Pro |
05.05.2021 |
1.02.5 |
Fully compatible |
