The PCIe interface with NVMe protocol is now the standard for consumer, enterprise, and embedded applications. Despite sharing SSD architecture, each has distinct needs. While client and enterprise applications prioritize high capacity and speed, these products often fail to meet high endurance demands.
Swissbit meets this challenge with its high-endurance PCIe M.2 SSDs, designed for applications requiring high write traffic or extreme longevity. Using pSLC or enterprise TLC technology, these SSDs support one to ten drive writes per day for five years under enterprise workload conditions.

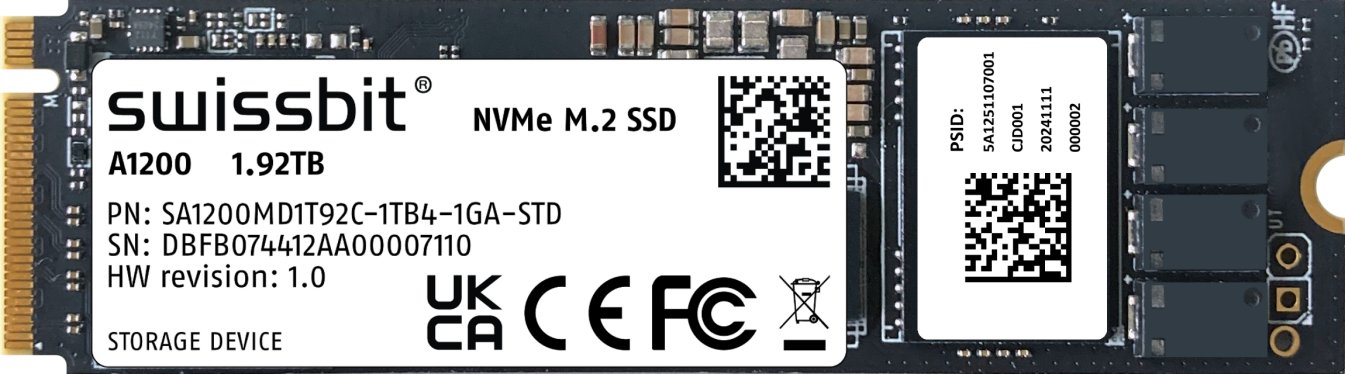

The A1200 and A2200 series boast high performance, temperature and data maintenance management, and extensive security options. In contrast, the N7600 and N2600 excel in power-limited applications. All series reflect Swissbit's core values.

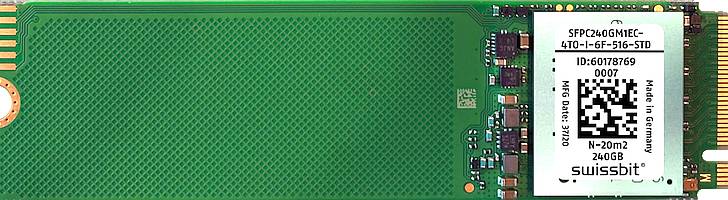

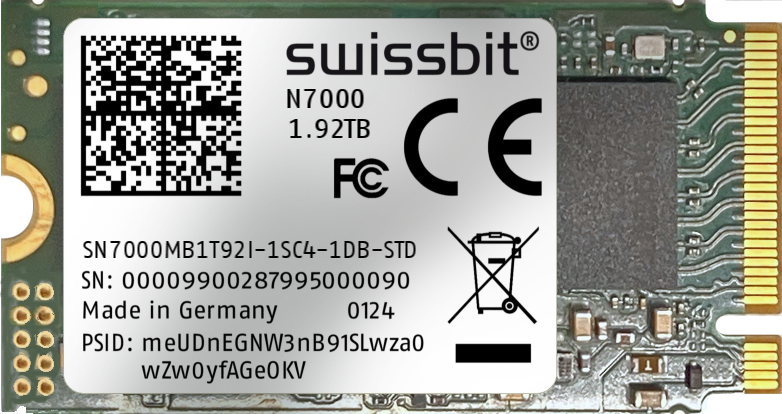

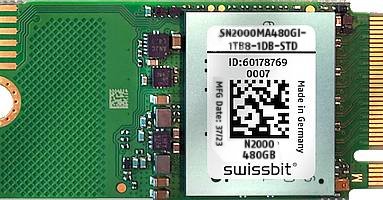

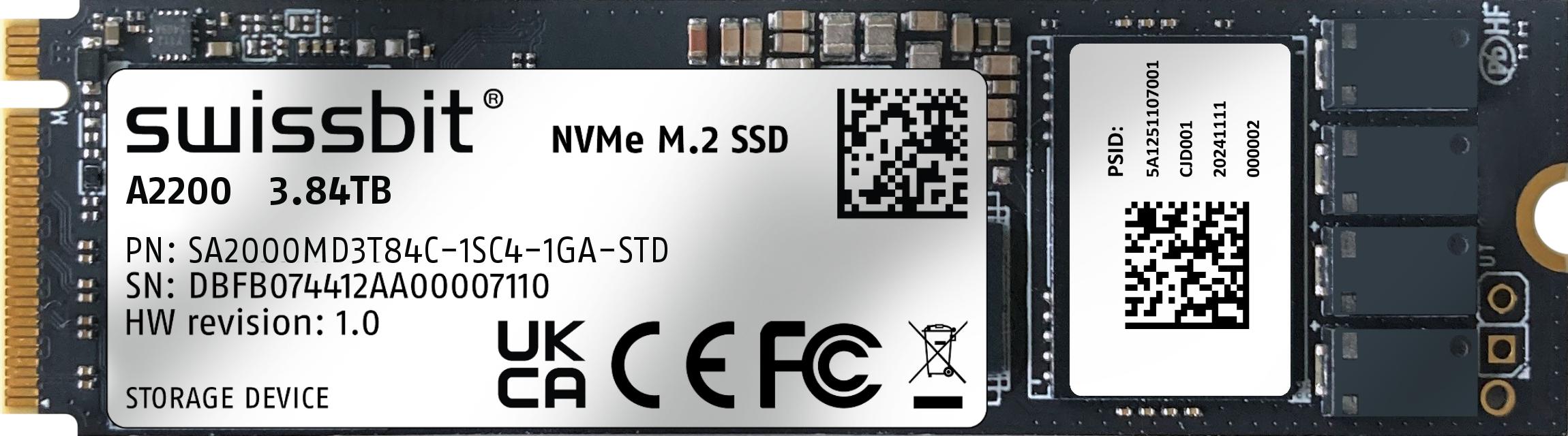

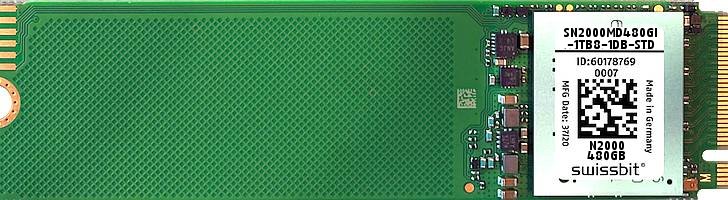

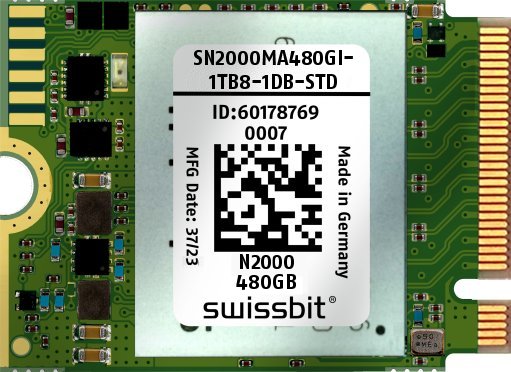

| A2200 (2280) | N7600 (2242) | N3602 (2280) | N2600 (2280) | N2600 (2242) | N2600 (2230) | N-26m2 (2280) | N-16m2 (2280) | |
|---|---|---|---|---|---|---|---|---|
| Series Name | A2200 M.2 | N7600 | N3602 | N2600 | N2600 | N2600 | N-26m2 | N-16m2 |
| Package | M.2 2280 | M.2 2242 | M.2 2280 | M.2 2280 | M.2 2242 | M.2 2230 | M.2 2280 | M.2 (2280) |
| Standards / Compliance | PCIe Gen 4.0 x4 / NVMe 1.4 | PCIe 4.0 / NVMe 2.0 | PCIe 4.0 / NVMe 1.4 | PCIe 3.1 / NVMe 1.3 | PCIe 3.1 / NVMe 1.3 | PCIe 3.1 / NVMe 1.3 | PCIe 3.1 / NVMe 1.3 | PCIe 3.1 / NVMe 1.2 |
| Interface / Protocol | x4 lanes / NVMe 1.4 | x4 lanes / NVMe 2.0 | x4 lanes / NVMe 1.4 | x4 lanes / NVMe 1.3 | x4 lanes / NVMe 1.3 | x4 lanes / NVMe 1.3 | x4 lanes / NVMe 1.3 | x2 lanes / NVMe 1.2 |
| Outline Dimensions (LxWxH) | 80 x 22 x 3.58 mm | 42 x 22 x 3.58 mm | 80 x 22 x 3.58 mm | 80 x 22 x 3.5 mm | 42 x 22 x 3.5 mm | 30 x 22 x 3.5 mm | 80 x 22 x 3.5 mm | 80 x 22 x 3.5 mm |
| Connector | 75 pos. Edge Connector
M key | 75 pos. Edge Connector
M key | 75 pos. Edge Connector
M key | 75 pos. Edge Connector
M key | 75 pos. Edge Connector
M key | 75 pos. Edge Connector
M key | 75 pos. Edge Connector
M key | 75 pos. Edge Connector
B&M key |
| Flash Type | 3D NAND eTLC | 3D NAND pSLC | 3D NAND pSLC | 3D NAND pSLC | 3D NAND pSLC | 3D NAND pSLC | 3D NAND pSLC | 3D NAND pSLC |
| Density Range | 480 GB – 3,84 TB | 80 GB - 1.28 TB | 80 GB – 320 GB | 20 GB - 160 GB | 20 GB - 160 GB | 20 GB - 160 GB | 5 GB - 160 GB | 20 GB - 320 GB |
| Data Retention | 3 months @ 40 °C at EOL | 10 years @ life begin
1 year @ life en | 10 years @ life begin
1 year @ life en | 10 years @ life begin
1 year @ life en | 10 years @ life begin
1 year @ life en | 10 years @ life begin
1 year @ life en | 10 years @ life begin
1 year @ life en | 10 years @ life begin
1 year @ life en |
| Endurance [DWPD] Enterprise WL | 1.0 for 5 years | max. 10 | max. 14.8 @ 3y | up to 12.8 | up to 12.8 | Up to 9.1 | up to 9.1 | up to 6.4 |
| Operating Temperature (ambient) | Commercial: 0°C to +70°C
Extended: -25°C to +85°C | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C | Industrial: -40°C to +85°C | Industrial: -40°C to +85°C | Industrial: -40°C to +85°C | Industrial: -40°C to +85°C | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C |
| Storage Temperature | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C |
| DRAM | DDR4 DRAM | HMB Support | DRAM buffer | HMB support | HMB support | HMB support | HMB support | DDR3 |
| Powerloss Protection | By firmware | By firmware | HW powersafe™ | By firmware | By firmware | By firmware | By firmware | By firmware |
| MTBF | > 2,500,000 hours | > 3,000,000 hours | > 3,000,000 hours | > 2,000,000 hours | > 2,000,000 hours | > 2,000,000 hours | > 2,000,000 hours | > 2,000,000 hours |
| Data Reliability | < 1 sector per 10^17 bits | <1 Sector per 10^16 Read | <1 Sector per 10^16 Read | <1 Sector per 10^16 Read | <1 Sector per 10^16 Read | <1 Sector per 10^16 Read | <1 Sector per 10^16 Read | <1 Sector per 10^16 Read |
| Shock | 1,000g, 0.5 ms | 1,500g, 0.5 ms | 1,500g, 0.5 ms | 1,500g, 0.5 ms | 1,500g, 0.5 ms | 1,500g, 0.5 ms | 1,500g, 0.5 ms | 1,500g, 0.5 ms |
| Vibration | 20 g, 20 - 2,000 Hz | 50g, 80-2,000 Hz | 50g, 80-2,000 Hz | 50g, 80-2,000 Hz | 50g, 80-2,000 Hz | 50g, 80-2,000 Hz | 50g, 80-2,000 Hz | 50g, 80-2,000 Hz |
| Humidity | 5 to 95% r.h. | 85% RH 85 °C, 1000 hrs | 85% RH 85 °C, 1000 hrs | 85% RH 85 °C, 1000 hrs | 85% RH 85 °C, 1000 hrs | 85% RH 85 °C, 1000 hrs | 85% RH 85 °C, 1000 hrs | 85% RH 85 °C, 1000 hrs |
| Voltages | VCC: 2.70 – 3.60 | VCC: 2.70 – 3.60 | VCC: 2.70 – 3.60 | VCC: 2.70 – 3.60 | VCC: 2.70 – 3.60 | VCC: 2.70 – 3.60 | VCC: 2.70 – 3.60 | VCC: 2.70 – 3.60 |
| Average Power | < 10 W | 3.7 W | 4.1 W | 2.7 W | 2.7 W | 2.7 W | 2.97 W | 3.7 W |
| Features & Tools | E2E Data Protection
S.M.A.R.T | NVMe-MI 1.2 support
Out of Band | Active and Passive D | Active and Passive D | Active and Passive D | Active and Passive D | Active and Passive D | Active and Passive D |
| Sequential Read (MB/s) | up to 6,410 | up to 6,660 | up to 3,850 | up to 1,770 | up to 1,750 | up to 1,750 | up to 1,780 | up to 1,600 |
| Sequential Write (MB/s) | up to 4,810 | up to 6,150 | up to 3,350 | up to 830 | up to 830 | up to 867 | up to 867 | up to 1,050 |
| Random 4KB Read (IOPS) | up to 1,070k | up to 608k | up to 393,000 | up to 140,000 | up to 140,000 | up to 140,000 | up to 89,000 | up to 190,000 |
| Random 4KB Write (IOPS) | up to 844k | up to 958k | up to 516,000 | up to 130,000 | up to 130,000 | up to 130,000 | up to 136,000 | up to 190,000 |
