CompactFlash™ PATA card

CompactFlash cards are still popular in embedded and industrial systems with PATA/IDE interface. Swissbit offers continuous support of this form factor in multiple densities. The most recent models C-500 and C-56 offer advanced page based flash management which increases both write performance and endurance especially in data logging applications.
All Swissbit CompactFlash cards can operate in the wide temperature range -40°C to 85°C. The cards are shock and vibration proof, and the firmware optimizes the wear out and protects from data corruption at power loss.

Performance
C-56C-500C-350C-300 Longevity
Series Name

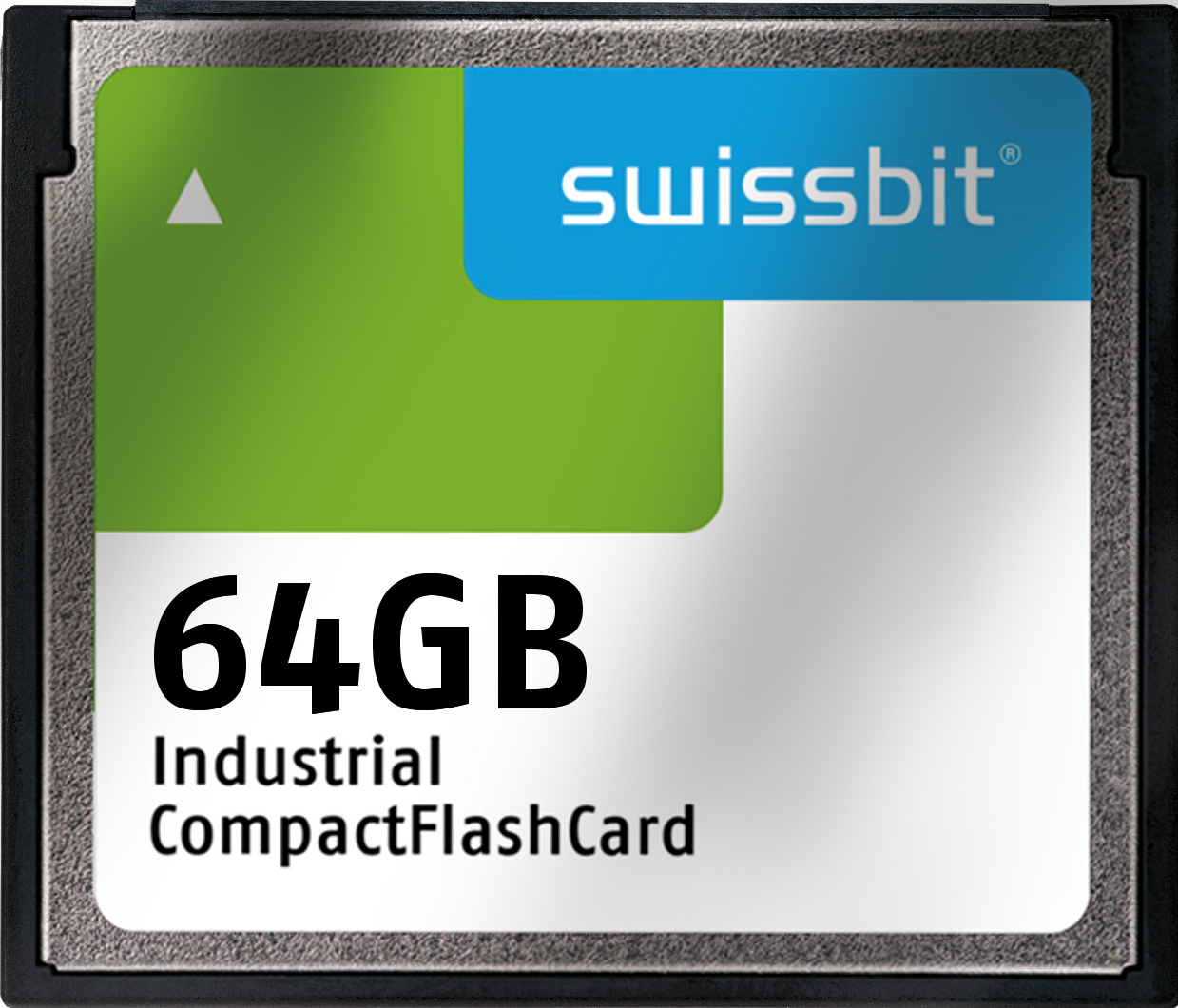

C-56
C-500

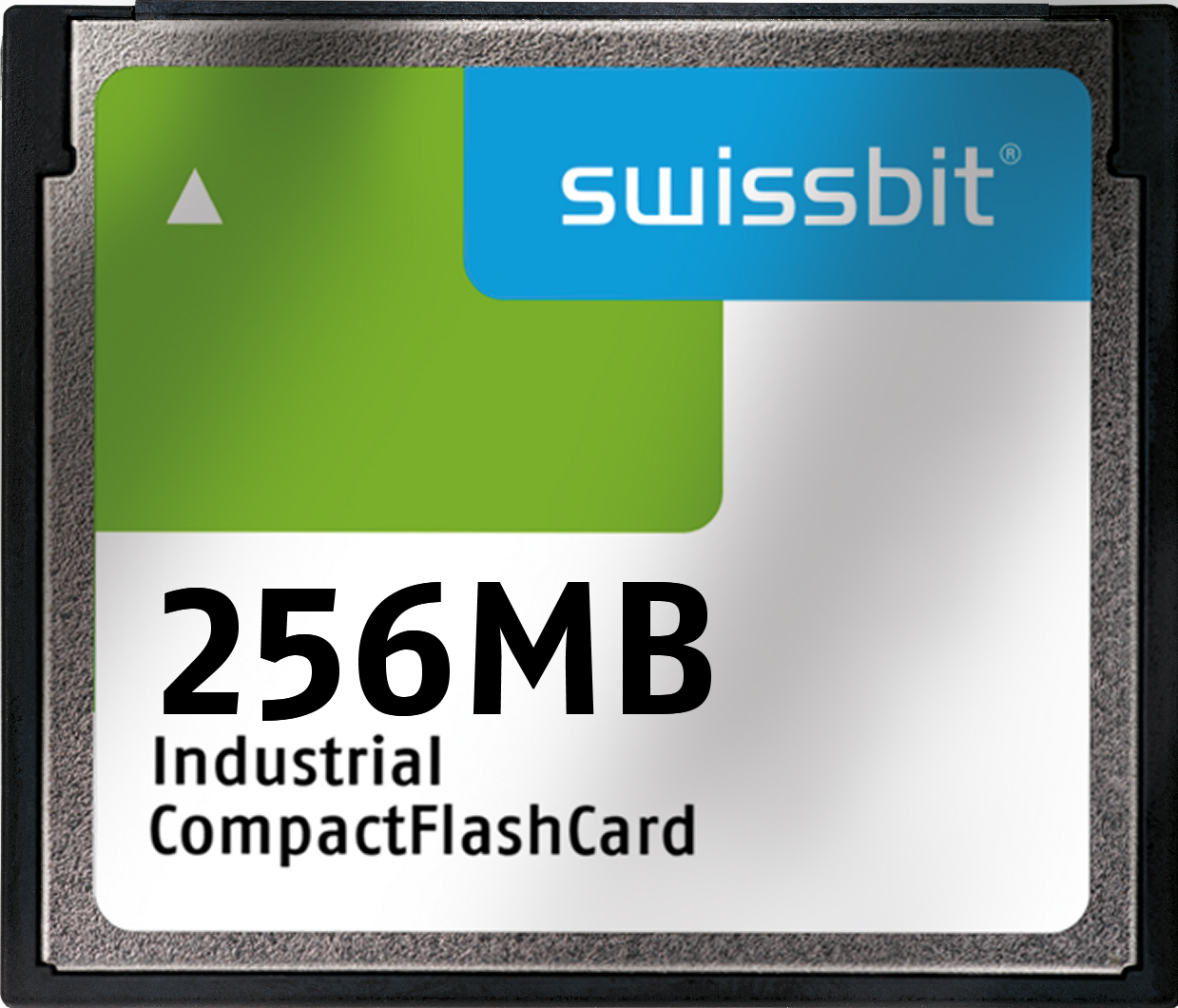

C-350

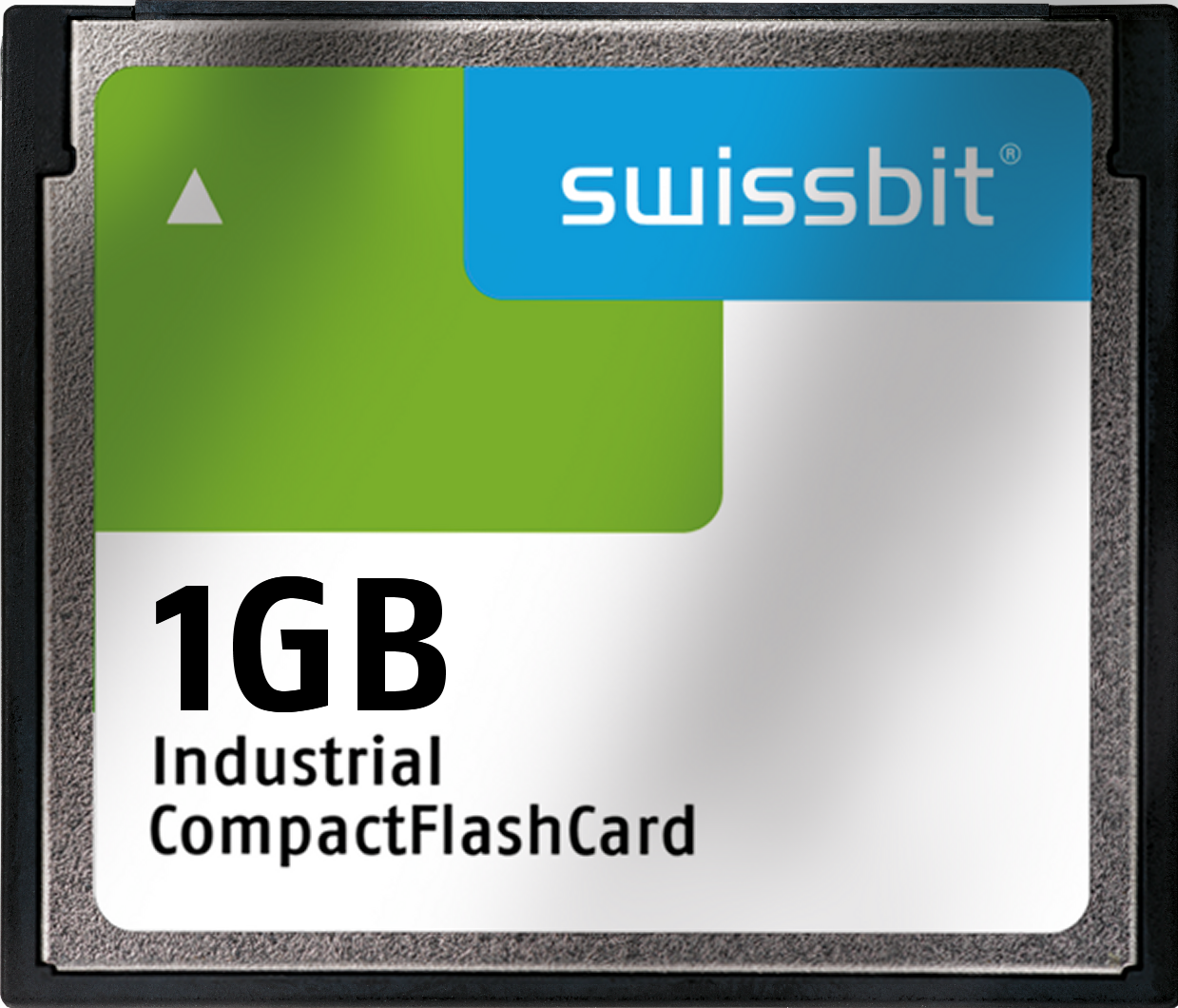

C-300L
Standards / Compliance
CFA5.0 / CFA6.1 compatible
CFA5.0 / CFA6.1 compatible
CFA 3.0 / CFA4.1 compatible
CFA 3.0 / CFA4.1 compatible
Interface / Protocol
True IDE / PC card
True IDE / PC card
True IDE / PC card
True IDE / PC card
Outline Dimensions (LxWxH)
36.4 x 42.8 x 3.3 mm
36.4 x 42.8 x 3.3 mm
36.4 x 42.8 x 3.3 mm
36.4 x 42.8 x 3.3 mm
Flash Type
pSLC
SLC
SLC
SLC
Density Range
4-64 GB
128 MB-64 GB
32-256 MB
128 MB-1 GB
Endurance [DWPD] Client WL or Random 128K
max 1.36
max 3.50
max 3.4
max 3.4
Operating Temperature (ambient)
Commercial: 0°C to +70°C Industrial: -40°C to +85°C
Commercial: 0°C to +70°C Industrial: -40°C to +85°C
Commercial: 0°C to +70°C Industrial: -40°C to +85°C
Commercial: 0°C to +70°C Industrial: -40°C to +85°C
Data Retention
10 years @ life begin 1 year @ life end
10 years @ life begin 1 year @ life end
10 years @ life begin 1 year @ life end
10 years @ life begin 1 year @ life end
Storage Temperature
-50°C to +100°C
-50°C to +100°C
-50°C to +100°C
-50°C to +100°C
MTBF
≥ 3,000,000 hours
≥ 3,000,000 hours
≥ 3,000,000 hours
≥ 3,000,000 hours
Shock
1,500 G
1,500 G
1,500 G
1,500 G
Vibration
20 G
20 G
20 G
20 G
Humidity
85 % RH 85°C, 1,000 hrs
85 % RH 85°C, 1,000 hrs
85 % RH 85°C, 1,000 hrs
85 % RH 85°C, 1,000 hrs
Voltages
3.3 V ± 10 % 5 V ± 10 %
3.3 V ± 10 % 5 V ± 10 %
3.3 V ± 10 % 5 V ± 10 %
3.3 V ± 10 % 5 V ± 10 %
Average Power
0.35 W
0.36 W
0.37 W
0.45 W
Features & Tools
Page based FTL for m
Page based FTL for m
Proven Power Fail Sa
Proven Power Fail Sa
Sequential Read (MB/s)
up to 115
up to 64
20
up to 38
Sequential Write (MB/s)
up to 66
up to 44
11
up to 20
Random 4KB Read (IOPS)
up to 5,000
up to 3,200
2,900
up to 3,350
Random 4KB Write (IOPS)
up to 3,300
up to 1,900
20
up to 50

C-56
Fact Sheet
C-500
Fact Sheet
C-350
Fact Sheet
C-300 Longevity
Fact Sheet
