Swissbit iShield Camera
Swissbit iShield Camera
Reliable Encryption and Access Protection of Video and Photo Data
The microSD card iShield Camera is a simple and retrofittable security solution especially for the encryption and access protection of video recordings. It is host-independent, i.e. plug-and-play, and can be used with a large number of camera types. The solution also includes the “iShield Camera Card Tool” (iCCT) software.

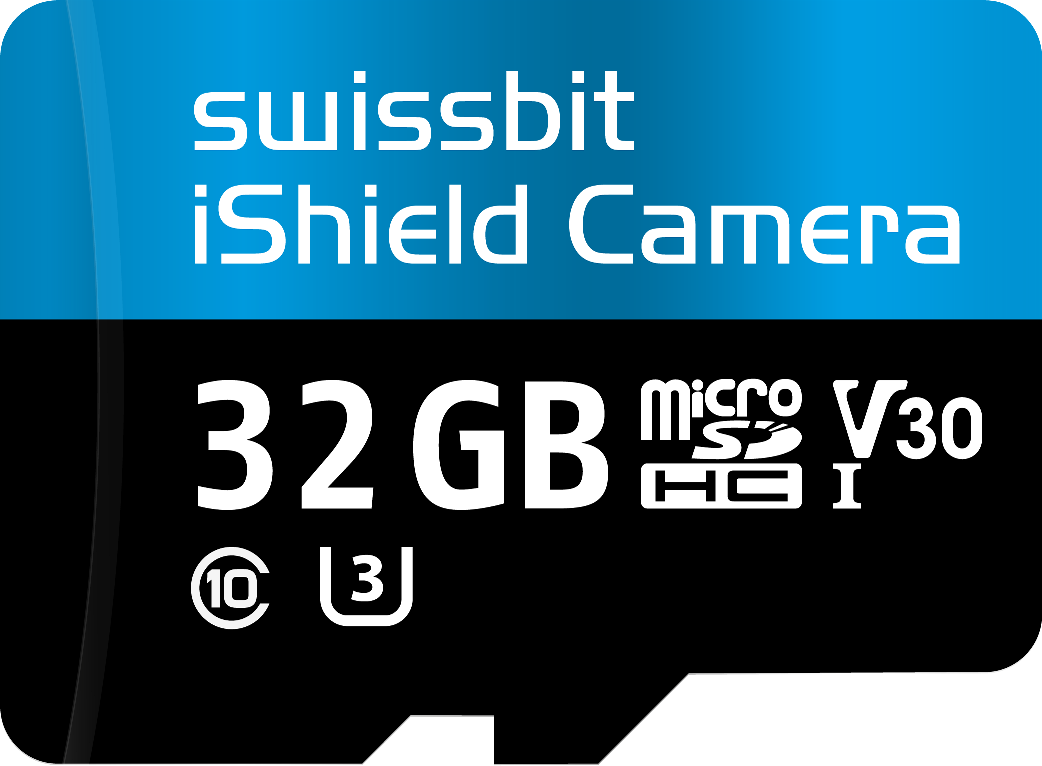

PS-66u iShield Camera
Host-independent plug-and-play solution for protecting data recorded with popular cameras
Intended use: drone camera, body camera, professional photography (DSLR), dash cam, surveillance camera, action camera, camera traps and more
Hardware encryption (AES 256bit) and access protection integrated on the memory card
Supports loop recording without host modification
Comes with user-friendly management tool (Windows10, macOS, Linux)
Reliable Encryption and Access Protection of Video and Photo Data
Thanks to the plug-and-play approach, iShield Camera can be easily integrated into existing systems. This allows manufacturers and users of drones, body cameras or dash cams to add an additional security feature to their models, specifically preventing unauthorized access to sensitive camera data or ensuring compliance with legal requirements. In addition to AES 256-bit encryption and PIN user authentication, iShield Camera features full HD video support and industrial-grade temperature resistance.
As soon as the camera is switched off or the microSD card is removed, the AES-256-bit-encrypted data content can no longer be read without PIN authentication, not even in the camera itself. Access and further processing are now only possible via the computer, where the card can be unlocked via iCCT. In this way, the unauthorized transfer, manipulation or deletion of video recordings is effectively prevented
| PS-66u iShield Camera | |
|---|---|
| Series Name | PS-66u iShield Camera |
| Density Range | 16 - 32 GB |
| Form Factor / Device Type | microSD Memory card |
| Outline Dimensions (LxWxH) | 15.0mm x 11.0mm x 0. |
| Compliance | Fully compliant with |
| Data Transfer Mode | SD Default speed, SD |
| Data Retention | 10 Years @ Life Begin
1 Year @ Life End |
| Operating Temperature (ambient) | -40 °C to 85 °C |
| Operating Voltage | 2.7…3.6V |
| Endurance @ Max Capacity | 967 TBW in sequentia |
| Features | AES 256 bit encrypti |
| Sequential Read (MB/s) | up to 39.5 MB/s |
| Sequential Write (MB/s) | up to 38.9 MB/s |
| Random 4KB Read (IOPS) | up to 767 |
| Random 4KB Write (IOPS) | up to 1,480 |
Downloads with a symbol are only available after loginOnly available after login
Swissbit Product Introduction: iShield Camera
This video requires marketing cookies to be enabled.
Where to buy iShield Camera
Check our partner data base for companies close to you where you can buy the Swissbit iShield Camera
