Genau wie die 2,5-Zoll-SATA-Laufwerke sind auch die Swissbit M.2-SSDs für Embedded-Anwendungen konzipiert, die Solid-State-Speicher in kleinen, austauschbaren Formfaktoren erfordern. Die SSD-Module sind auf Robustheit gegenüber häufigen Temperaturschwankungen im Bereich von -40 °C bis 85 °C ausgelegt, halten starken Stößen und Vibrationen stand und bieten überragende Leistung und Lebensdauer. Die auf MLC- und TLC-NAND-Flash basierenden Serien X1000, X-75m2 und X-60m2 sind für unterschiedliche Anwendungsfälle ausgelegt, darunter das Booten von Betriebssystemen, Datenprotokollierung, Überwachungsaufzeichnung oder Datensicherung.

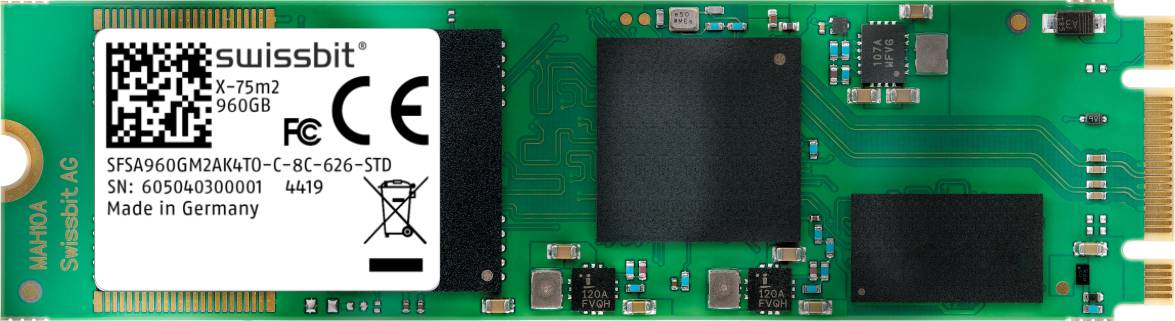

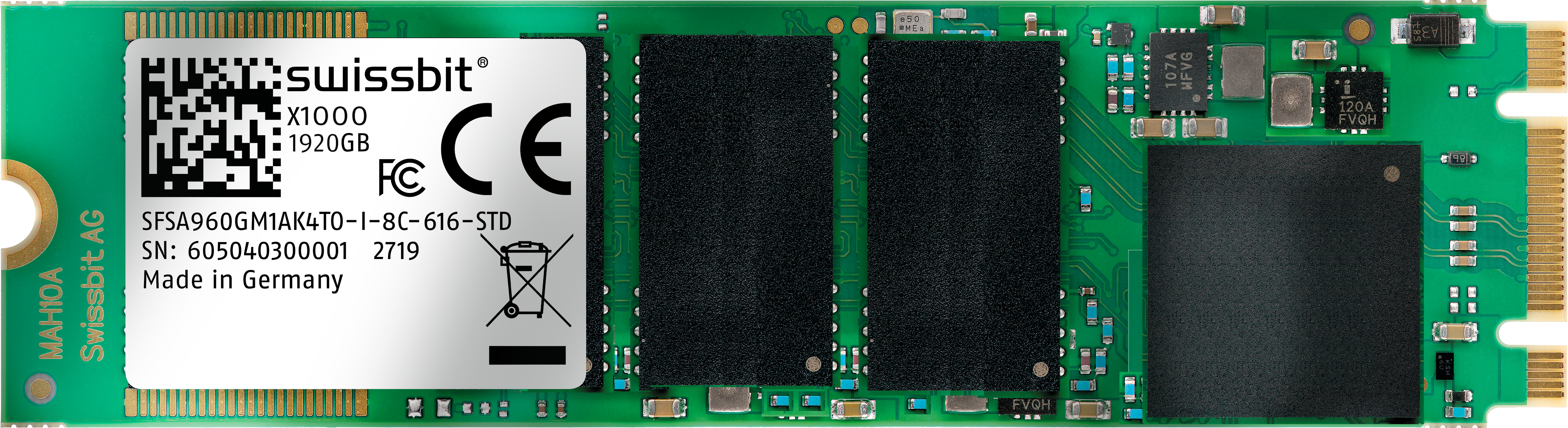

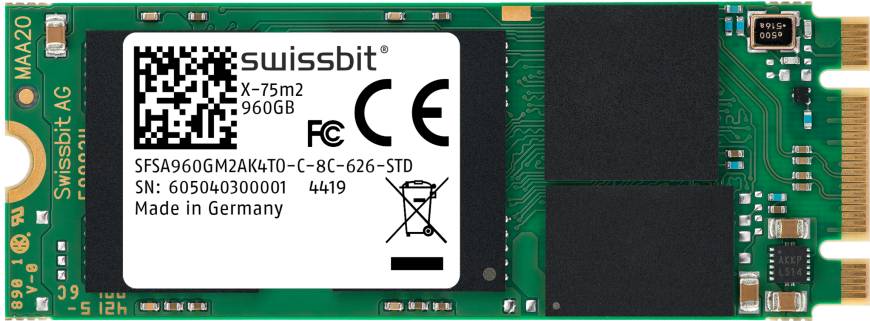

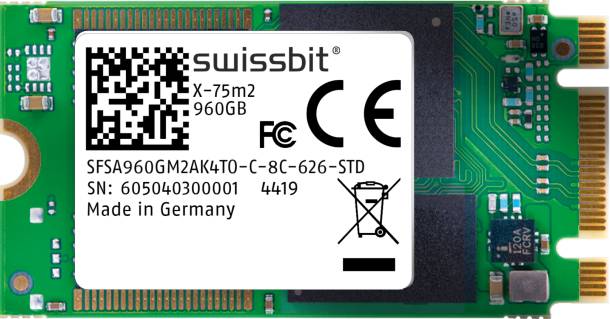

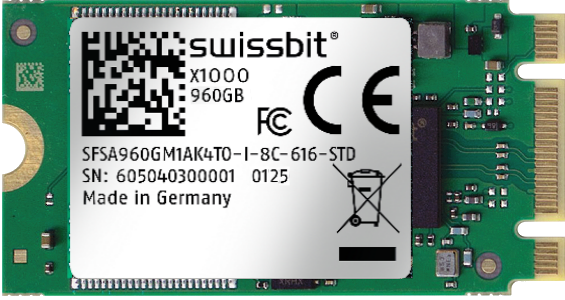

| X-75m2 (2280) P | X-75m2 (2280) | X-75m2 (2242) | X-60m2 (2280) | X-60m2 (2260) | X1000 (2280) | X1000 (2242) | |
|---|---|---|---|---|---|---|---|
| Series Name | X-75m2 P | X-75m2 | X-75m2 | X-60m2 | X-60m2 | X1000 | X1000 |
| Standards / Compliance | SATA Gen 3 | SATA Gen 3 | SATA Gen 3 | SATA Gen 3 | SATA Gen 3 | SATA Gen 3 | SATA Gen 3 |
| Interface / Protocol | ATA-8 | ATA-8 | ATA-8 | ATA-8 | ATA-8 | ATA-8 | ATA-8 |
| Data Transfer Mode | 6 Gbit/s | 6 Gbit/s | 6 Gbit/s | 6 Gbit/s | 6 Gbit/s | 6 Gbit/s | 6 Gbit/s |
| Connector | 75 pos. Edge Connector
B & M key | 75 pos. Edge Connector
B & M key | 75 pos. Edge Connector
B & M key | 75 pos. Edge Connector
B & M key | 75 pos. Edge Connector
B & M key | 75 pos. Edge Connector
B & M key | 75 pos. Edge Connector
B & M key |
| Outline Dimensions (LxWxH) | 22 x 80 x 3.6 mm | 22 x 80 x 3.6 mm | 22 x 42 x 3.6 mm | 22 x 80 x 3.6 mm | 22 x 60 x 3.6 mm | 22 x 80 x 3.6 mm | 22 x 42 x 3.6 mm |
| Flash Type | 3D NAND TLC | 3D NAND TLC | 3D NAND TLC | MLC | MLC | 3D NAND TLC | 3D NAND TLC |
| Density Range | 120-1,920 GB | 30-1,920 GB | 30-960 GB | 30-960 GB | 30-480 GB | 240 – 1,920 GB | 240 – 960 GB |
| DRAM | DRAM cache | DRAM cache | DRAM cache | DRAM cache | DRAM cache | ||
| Endurance [DWPD] Client WL or Random 128K | max 1.9 | max 1.9 | max 1.9 | 2.0 | 2.0 | ||
| Data Retention | 10 years @ life begin
1 year @ life end | 10 years @ life begin
1 year @ life end | 10 years @ life begin
1 year @ life end | 10 years @ life begin
1 year @ life end | 10 years @ life begin
1 year @ life end | 10 years @ life begin
1 year @ life end | 10 years @ life begin
1 year @ life end |
| Operating Temperature (ambient) | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C | Industrial: -40°C to +85°C | Industrial: -40°C to +85°C |
| Storage Temperature | -40°C to + 85°C | -40°C to + 85°C | -40°C to + 85°C | -40°C to + 85°C | -40°C to + 85°C | -40°C to + 85°C | -40°C to + 85°C |
| MTBF | ≥ 2,000,000 hours | ≥ 2,000,000 hours | ≥ 2,000,000 hours | ≥ 2,000,000 hours | ≥ 2,000,000 hours | ≥ 2,000,000 hours | ≥ 2,000,000 hours |
| Data Reliability | < 1 sector per 10^16 bits | < 1 sector per 10^16 bits | < 1 sector per 10^16 bits | < 1 sector per 10^16 bits | < 1 sector per 10^16 bits | < 1 sector per 10^16 bits | < 1 sector per 10^16 bits |
| Shock | 1,500G, 0.5 ms | 1,500G, 0.5 ms | 1,500G, 0.5 ms | 1,500G, 0.5 ms | 1,500G, 0.5 ms | 1,500G, 0.5 ms | 1,500G, 0.5 ms |
| Vibration | 50 G, 80-2,000 Hz | 50 G, 80-2,000 Hz | 50 G, 80-2,000 Hz | 50 G, 80-2,000 Hz | 50 G, 80-2,000 Hz | 50 G, 80-2,000 Hz | 50 G, 80-2,000 Hz |
| Humidity | 85 % RH 85°C, 1,000 hrs | 85 % RH 85°C, 1,000 hrs | 85 % RH 85°C, 1,000 hrs | 85 % RH 85°C, 1,000 hrs | 85 % RH 85°C, 1,000 hrs | 85 % RH 85°C, 1,000 hrs | 85 % RH 85°C, 1,000 hrs |
| Voltages | 3.3 V ± 5 % | 3.3 V ± 5 % | 3.3 V ± 5 % | 3.3 V ± 5 % | 3.3 V ± 5 % | 3.3 V ± 5 % | 3.3 V ± 5 % |
| Average Power | 2.0 W | 2.7 W | 2.7 W | 2.5 W | 2.5 W | 2.7 W | 2.7 W |
| Features & Tools | NCQ, TRIM
E2E Data Protection | NCQ, TRIM
E2E Data Protection | NCQ, TRIM
E2E Data Protection | NCQ, TRIM
AES 256 Encryption optional | NCQ, TRIM
AES 256 Encryption optional | FW based Power Fail | FW based Power Fail |
| Sequential Read (MB/s) | up to 560 | up to 565 | up to 565 | up to 520 | up to 520 | up to 520 | up to 520 |
| Sequential Write (MB/s) | up to 500 | up to 495 | up to 495 | up to 460 | up to 460 | up to 500 | up to 500 |
| Random 4KB Read (IOPS) | up to 77,700 | up to 77,200 | up to 77,200 | up to 75,000 | up to 75,000 | up to 81,000 | up to 81,000 |
| Random 4KB Write (IOPS) | up to 73,600 | up to 79,400 | up to 79,400 | up to 75,000 | up to 75,000 | up to 70,000 | up to 70,000 |
