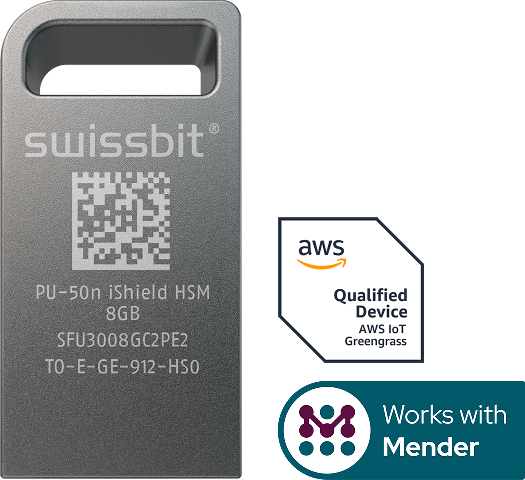

Swissbit iShield HSM

Reliably Storing Security Keys for Device Authentication and Registration

The iShield HSM is a plug-and-play USB security anchor that allows system integrators to upgrade existing AWS IoT Greengrass devices with a hardware security module, making it the perfect retrofit solution for finished hardware designs & in-field devices. iShield HSM securely stores the device’s private key and certificate so that they aren’t exposed or duplicated in software. The product is available as a high-quality, robust & compact USB memory stick, which supports PKCS#11 and PKCS#15 and is compatible with an open source software stack (e.g. OpenSC). A Secure Element (CC EAL6+) is embedded into iShield HSM’s hardware in COB (Chip-On Board) technology, making it tamper-proof and suited for harsh operating environments.

The iShield HSM is qualified for AWS IoT Greengrass Hardware Security Integration (HSI), providing a secure storage for keys and credentials used for device identification, authentication and registration.

iShield is the Swissbit product family brand for plug-and-play security products. Learn more.


Key Features

  • Retrofit Hardware Security Module using standard USB interface
    • Secure & tamper-proof key storage for IoT applications
    • Supports PKCS#11 / PKCS#15 (IsoApplet pre-loaded)
    • Compatible with OpenSC
    • Qualified for AWS IoT Greengrass
  • High quality, industrial grade USB memory stick
    • Compact & robust metal housing
    • MLC NAND with durabit-feature for best-in-class endurance
  • Secure Element embedded in hardware (COB)
    • CC EAL 6+
    • RSA up to 2048 bit
    • ECC up to 384 bit

Target Group

  • Manufacturer of connected devices, e.g. gateways, controllers
  • System integrators for building and industrial automation

Key Benefits

  • Easy to retrofit
  • Easy to update & upgrade
  • Security "Made in Germany"

Series Name

PU-50n iShield HSM
Cryptographic Standard
  • Supports PKCS#11 / PKCS#15 (IsoApplet pre-loaded)

Secure Element

  • CC EAL 6+
  • RSA up to 2048 bit
  • ECC up to 384 bit

Form Factor

  • USB3.1 solid state flash drive with USB Type-A connector
  • 24.0 mm x 12.1 mm x 4.5 mm
Compliance
  • USB 3.1 Gen 1 SuperSpeed specification compatible (backward compliance with USB 2.0/1.1)

Operating Temperature Range

Extended: -25 °C to 85 °C

Performance

  • Read Performance: Sequential Read up to 100 MBytes/s, Random Read IOPS up to 2.500
  • Write Performance: Sequential Write up to 25 MBytes/s,

Operating Voltage

  • 5.0 V ± 10%

Data Retention

  • 10 Years @ Life Begin; 1 Year @ Life End
Resources for HSM Setup for AWS IoT Greengrass
