iShield Archive & iShield Camera

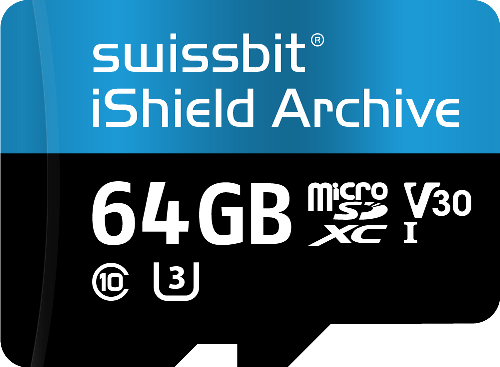

iShield Archive: Reliable Encryption and Access Protection of Data

iShield Archive is specifically designed to encrypt and protect any data. The microSD card can be used with any camera type and model, such as drones, body cams, dashcams, surveillance cameras or camera traps. The solution also includes the “iShield Archive Tool” (iAT) software.


Key Features

  • Capacities: 16 GBytes, 32 GBytes, 64 GBytes
  • Form Factor: Standard microSD Memory card form factor - 15.0mm x 11.0mm x 0.7mm (1.0mm)
  • High performance for full 4k recording: SD Default speed, SD High speed, SD UHS-I, Speed Class 10, Video Speed Class 30
  • Endurance @ Max Capacity 64GB2: 4000 TBW (TeraBytes Written) in sequential write workload; 550 TBW in 4k random write workload
  • Data retention: 10 Years @ Life Begin / 1 Year @ Life End
  • Industrial Temp: -40 to 85°C
  • Provided with user-friendly “iShield Archive Tool (iAT)”
  • Windows 10/11, MacOS and Linux are supported


Key Applications

  • Drone drone camera, body camera, professional photography (DSLR), dash cam, surveillance camera, action camera, camera traps, and more
  • Access protection of data on microSD card
  • Encryption of data on microSD card

Key Benefits

  • Pluggable: Ideal for retrofitting existing system
  • Easy-to-use: Plug-and-play card for video recording systems without host modification
  • Cost efficient: Integration of security solution without installation effort

Series Name

iShield Archive

Capacities

16 GBytes, 32 GBytes, 64 GBytes

Form Factor

Standard microSD Memory card form factor - 15.0mm x 11.0mm x 0.7mm (1.0mm)

Compliance

Fully compliant with SD Memory Card specification 5.0 and microSD Memory Card Addendum 4.00

Performance

  • SD Default speed, SD High speed, SD UHS-I, Speed Class 10, Video Speed Class 30
  • Read Performance: Sequential Read up to 39 MBytes/s, Random Read IOPS up to 740
  • Write Performance: Sequential Write up to 37 MBytes/s, Random Write IOPS up to 1.350

Operating Temperature Range

Industrial: -40 °C to 85 °C

Operating Voltage

2.7…3.6V normal operating voltage (Low-power CMOS technology)

Data Retention

10 Years @ Life Begin / 1 Year @ Life End

Endurance @ Max Capacity

4.000 TBW (TeraBytes Written) in sequential write workload; 550 TBW in 4k random write workload

iShield Camera: Reliable Encryption and Access Protection of Video and Photo Data

The microSD card iShield Camera is a simple and retrofittable security solution especially for the encryption and access protection of video recordings. It is host-independent, i.e. plug-and-play, and can be used with a large number of camera types. The solution also includes the “iShield Camera Card Tool” (iCCT) software.


Key Features

  • Encryption: AES 256 bit
  • User authentication: configurable PIN
  • High performance for full HD video support (UHS-I, speed class 10)
  • Lifetime: 3.000 overwrite cycles for video recording (85 TBW @32GB)
  • Data retention (with non-powered storage): 10 years
  • Industrial Temp (-40…85°C)
  • FAT32 formatted
  • Windows 10, MacOS and Linux are supported





Key Applications

  • Drone camera (e.g. DJI, Sensefly), body camera, professional photography (DSLR), dash cam (e.g. WDR, Mio, VanTrue), surveillance camera, action camera, camera traps (e.g. Apeman, Reconyx, Browning), and more
  • Access protection of video and photo recordings on microSD card
  • Encryption of video and photo recordings on microSD card

Key Benefits

  • Pluggable: Ideal for retrofitting existing system
  • Easy-to-use: Plug-and-play card for video recording systems without host modification
  • Cost efficient: Integration of security solution without installation effort

Series Name

iShield Camera

Capacities

16 GBytes, 32 GBytes

Form Factor

Standard microSD Memory card form factor - 15.0mm x 11.0mm x 0.7mm (1.0mm)

Compliance

Fully compliant with SD Memory Card specification 2.0 and 3.0 and microSD Memory Card Addendum 4.00

Performance

  • SD Default speed, SD High speed, SD UHS-I, Speed Class 10
  • Read Performance: Sequential Read up to 15 MBytes/s, Random Read IOPS up to 750
  • Write Performance: Sequential Write up to 12 MBytes/s, Random Write IOPS up to 500

Operating Temperature Range

Industrial: -40 °C to 85 °C

Operating Voltage

2.7…3.6V normal operating voltage (Low-power CMOS technology)

Data Retention

10 Years @ Life Begin / 1 Year @ Life End

Endurance @ Max Capacity

85 TBW (TeraBytes Written)

Type

Maker Model Test Date Camera Firmware Compatibility

Drone

DJI Mini 1 / Mini 2 26.04.2022

Drone

DJI Mavic 2 Pro / Zoom 08.03.2021 01.00.0670 Full compatible up to 3840x2160@24fps

Drone

DJI

Mavic Air 1 / Air 2 / Air 2S

26.04.2022



Fully compatible

Drone

DJI

Mavic 2 Enterprise Zoom / Dual

26.04.2022



Fully compatible

Drone

DJI

Mavic 2 Enterprise Advanced

26.04.2022



Fully compatible; please note, that only video or photo be recorded without the option of taking photo while recording a video

Drone

DJI

Smart Controller

26.04.2022



Fully compatible; please note: storage location must be set once to external microSD - so that all data is recorded in encrypted mode

Drone

DJI

Smart Controller Enterprise

26.04.2022



Fully compatible; please note:storage location must be set once to external microSD - so that all data is recorded in encrypted mode

Drone

DJI

Matrice 210 serie with Zenmuse Z30 / X5S / XT2

26.04.2022



Fully compatible

Drone

DJI

Matrice 300 series withZenmuse H20 / H20T

26.04.2022



Fully compatible

Drone

Sensefly

S.O.D.A.

01.03.2021

V1.3.0

Fully compatible

Dashcam

WDR

Full HD 1080p

17.02.2021

V1

Fully compatible

Dashcam

Mio

MiVue

17.02.2021

2015

Fully compatible

Dashcam

VanTrue

N2 Pro

24.02.2021

VTN2Pro0D.V38

Fully compatible

Dashcam

iTracker

GS6000-A12 23.02.2021

ITR3H2HWCS2DGE.

20181221.V1

Partly compatible: Card is working fine with active security; incompatibility warning can be ignored

Action Cam

Apeman

Action Camera

22.02.2021



Partly compatible: SD card need to be formatted

Action Cam

Akaso

V50 Elite

22.02.2021



Incompatible: but possible as customer specific non-UHS product variant (on request)

Photo Camera

Nikon

D7100

17.02.2021

V1.04

Fully compatible

Trail Cam

Apeman

Trail Camera

17.02.2021

V2.2.0

Fully compatible

Trail Cam

Reconyx

Hyperfire 2

17.02.2021

1.4.20180824a

Fully compatible

Trail Cam

Browning

Recon Force Elite HP4

08.04.2021

BTC7EH4_K12031F

Fully compatible

Trail Cam

Wildlife Monitoring Solutions

4.0CG-R

08.04.2021

5.5.9

Compatible except 4G function, it will be fixed soon

Time Lapse Camera

Brinno

TLC200Pro

05.05.2021

1.02.5

Fully compatible
