SATA M.2 SSD Module mit erweiterter Lebensdauer

Beschreibung

Genau wie die 2,5-Zoll-SATA-Laufwerke sind auch die Swissbit M.2-SSDs für Embedded-Anwendungen konzipiert, die Solid-State-Speicher in kleinen, austauschbaren Formfaktoren erfordern. Die SSD-Module sind auf Robustheit gegenüber häufigen Temperaturschwankungen im Bereich von -40 °C bis 85 °C ausgelegt, halten starken Stößen und Vibrationen stand und bieten überragende Leistung und Lebensdauer. Die M.2-SSD-Module mit hoher Lebensdauer verfügen über SLC- oder pSLC-NAND-Technologie und bieten eine bis zu 50-mal höhere Lebensdauer als MLC- oder TLC-Produkte. Die Serien X1600, X-86m2, X-76m2, X-66m2 und X-600m2 sind auf verschiedene Anwendungsfälle ausgerichtet, darunter Betriebssystem-Boot, Datenprotokollierung, Überwachungsaufzeichnung oder Datensicherung.

Spezifikationen

Leistung

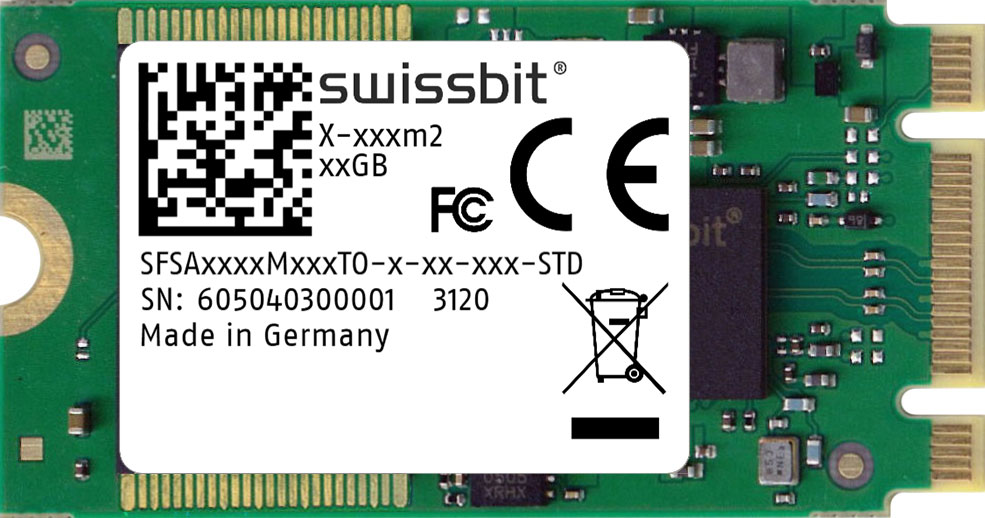

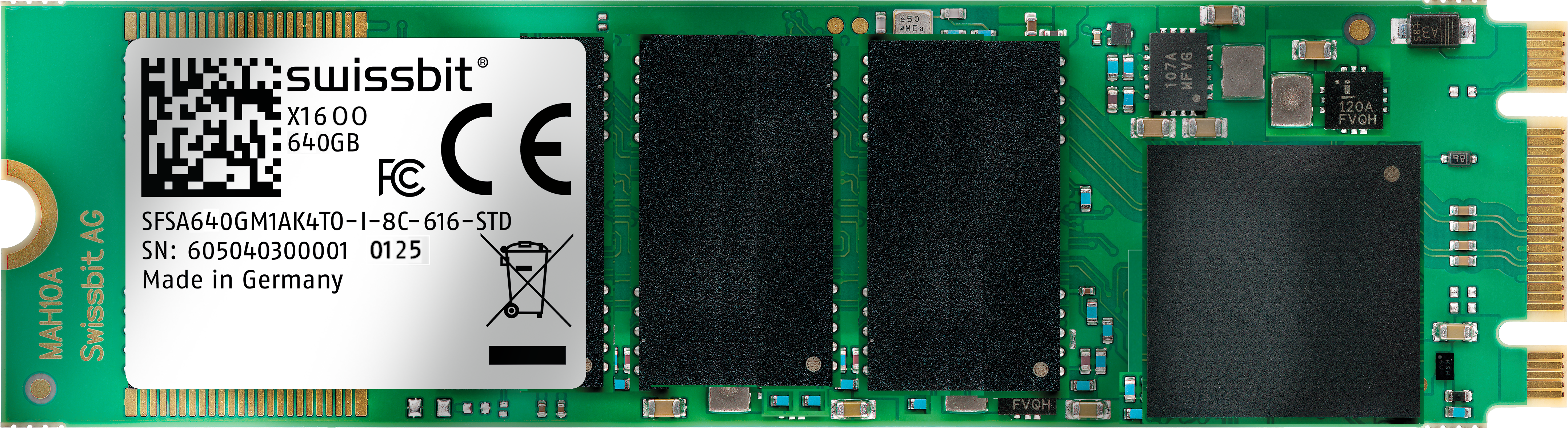

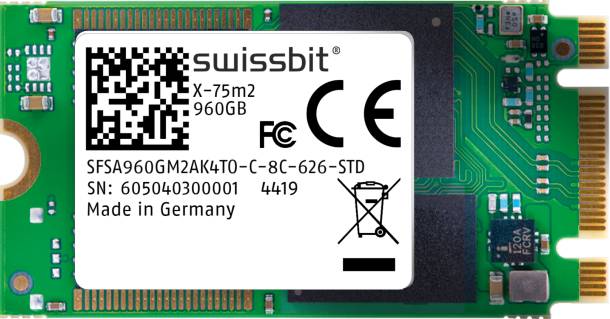

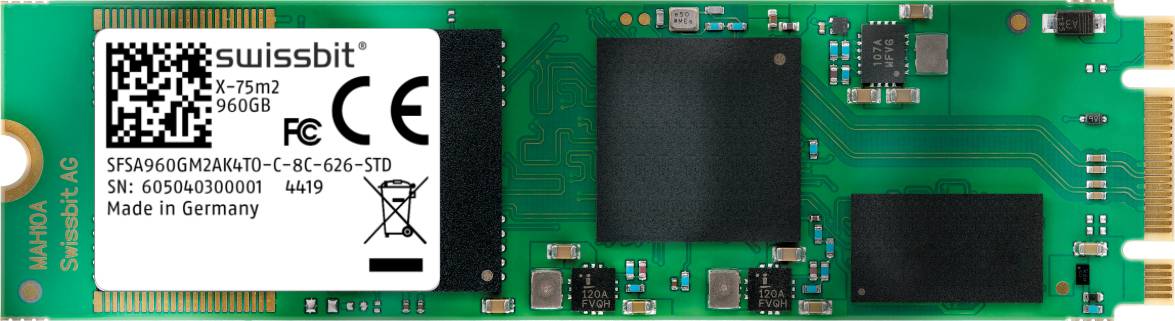

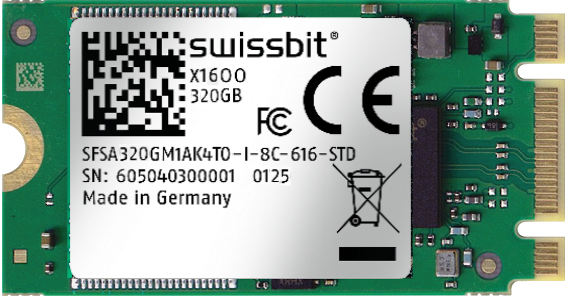

	X-76m2 (2280)	X-76m2 (2242)	X-78m2 (2280)	X-78m2 (2242)	X-600m2 (2280)	X-600m2 (2242)	X-66m2 (2280)	X-66m2 (2242)	X-86m2 (2242)	X1600 (2280)	X1600 (2242)
Series Name	X-76m2	X-76m2	X-78m2	X-78m2	X-600m2	X-600m2	X-66m2	X-66m2	X-86m2	X1600	X1600
Standards / Compliance	SATA Gen 3	SATA Gen 3	SATA Gen 3	SATA Gen 3	SATA Gen 3	SATA Gen 3	SATA Gen 3	SATA Gen 3	SATA Gen 3	SATA Gen 3	SATA Gen 3
Interface / Protocol	ATA-8	ATA-8	ATA-8	ATA-8	ATA-8	ATA-8	ATA-8	ATA-8	ATA-8	ATA-8	ATA-8
Outline Dimensions (LxWxH)	22 x 80 x 3.6 mm	22 x 42 x 3.6 mm	22 x 80 x 3.6 mm	22 x 42 x 3.6 mm	22 x 80 x 3.6 mm	22 x 42 x 3.6 mm	22 x 80 x 3.6 mm	22 x 42 x 3.6 mm	22 x 42 x 3.6 mm	22 x 80 x 3.6 mm	22 x 42 x 3.6 mm
Flash Type	3D NAND pSLC	3D NAND pSLC	3D NAND pSLC	3D NAND pSLC	SLC	SLC	pSLC	pSLC	3D NAND pSLC	3D NAND pSLC	3D NAND pSLC
Density Range	10-320 GB	10-160 GB	32-320 GB	32-320 GB	8-128 GB	8-64 GB	16-240 GB	16-120 GB	10-160 GB	80 – 640 GB	80 – 320 GB
DRAM	DRAM cache	DRAM cache	DRAM cache	DRAM cache	DRAM cache	DRAM cache	DRAM cache	DRAM cache
Endurance [DWPD] Client WL or Random 128K	max 22.7	max 22.7	max 60.5	max 60.5	36.3	36.3	13.2	13.2	max 13
Data Retention	10 years @ life begin 1 year @ life end	10 years @ life begin 1 year @ life end	10 years @ life begin 1 year @ life end	10 years @ life begin 1 year @ life end	10 years @ life begin 1 year @ life end	10 years @ life begin 1 year @ life end	10 years @ life begin 1 year @ life end	10 years @ life begin 1 year @ life end	10 years @ life begin 1 year @ life end	10 years @ life begin 1 year @ life end	10 years @ life begin 1 year @ life end
Operating Temperature (ambient)	Commercial: 0°C to +70°C Industrial: -40°C to +85°C	Commercial: 0°C to +70°C Industrial: -40°C to +85°C	Commercial: 0°C to +70°C Industrial: -40°C to +85°C	Commercial: 0°C to +70°C Industrial: -40°C to +85°C	Commercial: 0°C to +70°C Industrial: -40°C to +85°C	Commercial: 0°C to +70°C Industrial: -40°C to +85°C	Commercial: 0°C to +70°C Industrial: -40°C to +85°C	Commercial: 0°C to +70°C Industrial: -40°C to +85°C	Commercial: 0°C to +70°C Industrial: -40°C to +85°C	Industrial: -40°C to +85°C	Industrial: -40°C to +85°C
Storage Temperature	-40°C to + 85°C	-40°C to + 85°C	-40°C to + 85°C	-40°C to + 85°C	-40°C to + 85°C	-40°C to + 85°C	-40°C to + 85°C	-40°C to + 85°C	-40°C to + 85°C	-40°C to + 85°C	-40°C to + 85°C
MTBF	≥ 2,000,000 hours	≥ 2,000,000 hours	≥ 2,000,000 hours	≥ 2,000,000 hours	≥ 2,000,000 hours	≥ 2,000,000 hours	≥ 2,000,000 hours	≥ 2,000,000 hours	≥ 2,000,000 hours	≥ 2,000,000 hours	≥ 2,000,000 hours
Data Reliability	< 1 sector per 10^16 bits	< 1 sector per 10^16 bits	< 1 sector per 10^16 bits	< 1 sector per 10^16 bits	< 1 sector per 10^16 bits	< 1 sector per 10^16 bits	< 1 sector per 10^16 bits	< 1 sector per 10^16 bits	< 1 sector per 10^16 bits	< 1 sector per 10^16 bits	< 1 sector per 10^16 bits
Shock	1,500G, 0.5 ms	1,500G, 0.5 ms	1,500G, 0.5 ms	1,500G, 0.5 ms	1,500G, 0.5 ms	1,500G, 0.5 ms	1,500G, 0.5 ms	1,500G, 0.5 ms	1,500G, 0.5 ms	1,500G, 0.5 ms	1,500G, 0.5 ms
Vibration	50 G, 80-2,000 Hz	50 G, 80-2,000 Hz	50 G, 80-2,000 Hz	50 G, 80-2,000 Hz	50 G, 80-2,000 Hz	50 G, 80-2,000 Hz	50 G, 80-2,000 Hz	50 G, 80-2,000 Hz	50 G, 80-2,000 Hz	50 G, 80-2,000 Hz	50 G, 80-2,000 Hz
Humidity	85 % RH 85°C, 1,000 hrs	85 % RH 85°C, 1,000 hrs	85 % RH 85°C, 1,000 hrs	85 % RH 85°C, 1,000 hrs	85 % RH 85°C, 1,000 hrs	85 % RH 85°C, 1,000 hrs	85 % RH 85°C, 1,000 hrs	85 % RH 85°C, 1,000 hrs	85 % RH 85°C, 1,000 hrs	85 % RH 85°C, 1,000 hrs	85 % RH 85°C, 1,000 hrs
Voltages	3.3 V ± 5 %	3.3 V ± 5 %	3.3 V ± 5 %	3.3 V ± 5 %	3.3 V ± 5 %	3.3 V ± 5 %	3.3 V ± 5 %	3.3 V ± 5 %	3.3 V ± 5 %	3.3 V ± 5 %	3.3 V ± 5 %
Average Power	2.6 W	2.6 W	2.3 W	2.3 W	2.1 W	2.1 W	2.4 W	2.4 W	1.0 W	2.7 W	2.7 W
Features & Tools	NCQ, TRIM E2E Data Protection	NCQ, TRIM E2E Data Protection	NCQ, TRIM E2E Data Protection	NCQ, TRIM E2E Data Protection	NCQ, TRIM AES 256 Encryption optional	NCQ, TRIM AES 256 Encryption optional	NCQ, TRIM AES 256 Encryption optional	NCQ, TRIM AES 256 Encryption optional	NCQ, TRIM E2E Data Protection	FW based Power Fail	FW based Power Fail
Sequential Read (MB/s)	up to 560	up to 560	up to 560	up to 560	up to 520	up to 520	up to 520	up to 520	up to 370	up to 520	up to 520
Sequential Write (MB/s)	up to 480	up to 480	up to 485	up to 485	up to 405	up to 405	up to 450	up to 450	up to 220	up to 500	up to 500
Random 4KB Read (IOPS)	up to 74,000	up to 74,000	up to 72,900	up to 72,900	up to 76,000	up to 76,000	up to 80,000	up to 80,000	up to 13,100	up to 81,000	up to 81,000
Random 4KB Write (IOPS)	up to 84,900	up to 84,900	up to 85,900	up to 85,900	up to 73,000	up to 73,000	up to 77,000	up to 77,000	up to 8,300	up to 70,000	up to 70,000
