Die mSATA-SSD-Module MO-300 von Swissbit im Full-Size-Format sind ideale Lösungen für Embedded-Anwendungen, die Solid-State-Speicher in einem kompakten, austauschbaren Formfaktor erfordern. Jedes Gerät wird vor der Auslieferung einem umfassenden Test über den gesamten Temperaturbereich unterzogen.
Die Modelle X-66m mit pSLC, X-60m mit MLC und X-600m mit SLC-Technologie unterstützen die SATA-6-Gb/s-Schnittstelle mit DRAM-gestütztem FTL. Sie sind für alle Industrie-, Netzwerkanwendungen und Automobilanwendungen konzipiert, die hohe Datenübertragungsraten von bis zu 520 MB/s bei sequenziellem Zugriff und 78.000 IOPS bei 4-KB-Zufallszugriff erfordern.

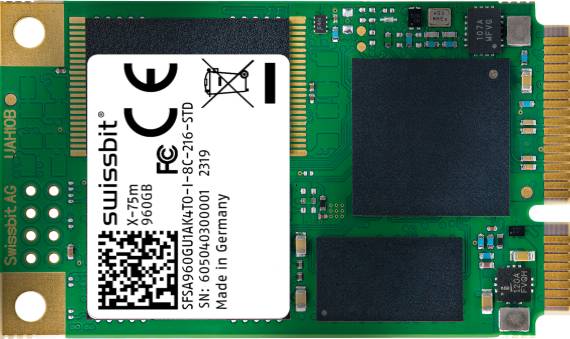

Die neuen X-75m-Module mit 3D-NAND in Industriequalität sind für anspruchsvolle Anwendungen konzipiert und unterstützen Hintergrund-Datenaktualisierung, AES sowie durchgängigen Datenschutz.
Für höhere Anforderungen an die Lebensdauer ist das X-76m mit 3D-pSLC-Modus die bevorzugte Lösung.
| X-75m | X-76m | X-600m | X-66m | X-60m | |
|---|---|---|---|---|---|
| Series Name | X-75m | X-76m | X-600m | X-66m | X-60m |
| Standards / Compliance | SATA Gen 3 | SATA Gen 3 | SATA Gen 3 | SATA Gen 3 | SATA Gen 3 |
| Interface / Protocol | ATA-8 | ATA-8 | ATA-8 | ATA-8 | ATA-8 |
| Data Transfer Mode | 6 Gbit/s | 6 Gbit/s | 6 Gbit/s | 6 Gbit/s | 6 Gbit/s |
| Connector | 52 pos. Edge Connector
(PCI Express mini) | 52 pos. Edge Connector
(PCI Express mini) | 52 pos. Edge Connector
(PCI Express mini) | 52 pos. Edge Connector
(PCI Express mini) | 52 pos. Edge Connector
(PCI Express mini) |
| Outline Dimensions (LxWxH) | 50.8 x 29.85 x 3.8 mm | 50.8 x 29.85 x 3.8 mm | 50.8 x 29.85 x 3.8 mm | 50.8 x 29.85 x 3.8 mm | 50.8 x 29.85 x 3.8 mm |
| Flash Type | 3D NAND TLC | 3D NAND pSLC | SLC | pSLC | MLC |
| Density Range | 30-960 GB | 10-320 GB | 4-128 GB | 4-240 GB | 8-480 GB |
| DRAM | DRAM cache | DRAM cache | DRAM cache | DRAM cache | DRAM cache |
| Endurance [DWPD] Client WL or Random 128K | max 0.9 | max 22.7 | 36.3 | 13.2 | 2.0 |
| Data Retention | 10 years @ life begin
1 year @ life end | 10 years @ life begin
1 year @ life end | 10 years @ life begin
1 year @ life end | 10 years @ life begin
1 year @ life end | 10 years @ life begin
1 year @ life end |
| Operating Temperature (ambient) | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C |
| Storage Temperature | -40°C to + 85°C | -40°C to + 85°C | -40°C to + 85°C | -40°C to + 85°C | -40°C to + 85°C |
| MTBF | ≥ 2,000,000 hours | ≥ 2,000,000 hours | ≥ 2,000,000 hours | ≥ 2,000,000 hours | ≥ 2,000,000 hours |
| Data Reliability | < 1 sector per 10^16 bits | < 1 sector per 10^16 bits | < 1 sector per 10^16 bits | < 1 sector per 10^16 bits | < 1 sector per 10^16 bits |
| Shock | 1,500G, 0.5 ms | 1,500G, 0.5 ms | 1,500G, 0.5 ms | 1,500G, 0.5 ms | 1,500G, 0.5 ms |
| Vibration | 50 G, 80-2,000 Hz | 50 G, 80-2,000 Hz | 50 G, 80-2,000 Hz | 50 G, 80-2,000 Hz | 50 G, 80-2,000 Hz |
| Humidity | 85 % RH 85°C, 1,000 hrs | 85 % RH 85°C, 1,000 hrs | 85 % RH 85°C, 1,000 hrs | 85 % RH 85°C, 1,000 hrs | 85 % RH 85°C, 1,000 hrs |
| Voltages | 3.3 V ± 5 % | 3.3 V ± 5 % | 3.3 V ± 5 % | 3.3 V ± 5 % | 3.3 V ± 5 % |
| Average Power | 2.8 W | 2.6 W | 2.1 W | 1.8 W | 2.4 W |
| Features & Tools | NCQ, TRIM
E2E Data Protection | NCQ, TRIM
E2E Data Protection | NCQ, TRIM
AES 256 Encryption optional | NCQ, TRIM
AES 256 Encryption optional | NCQ, TRIM
AES 256 Encryption optional |
| Sequential Read (MB/s) | up to 565 | up to 560 | up to 520 | up to 520 | up to 520 |
| Sequential Write (MB/s) | up to 495 | up to 480 | up to 405 | up to 450 | up to 450 |
| Random 4KB Read (IOPS) | up to 73,600 | up to 74,000 | up to 76,000 | up to 80,000 | up to 75,000 |
| Random 4KB Write (IOPS) | up to 79,400 | up to 84,900 | up to 73,000 | up to 75,000 | up to 75,000 |
