CompactFlash-Karten sind in Embedded- und Industriesystemen mit PATA/IDE-Schnittstelle nach wie vor im Einsatz. Swissbit bietet diesen Formfaktor weiterhin in verschiedenen Speicherkapazitäten an. Die neuesten Modelle C-500 und C-56 verfügen über ein fortschrittliches seitenbasiertes Flash-Management, das sowohl die Schreibleistung als auch die Lebensdauer insbesondere bei Datenerfassungsanwendungen erhöht.
Alle Swissbit CompactFlash-Karten sind im weiten Temperaturbereich von -40 °C bis 85 °C einsetzbar. Die Karten sind stoß- und vibrationsfest, und die Firmware optimiert die Lebensdauer und schützt vor Datenverlust bei Stromausfall.

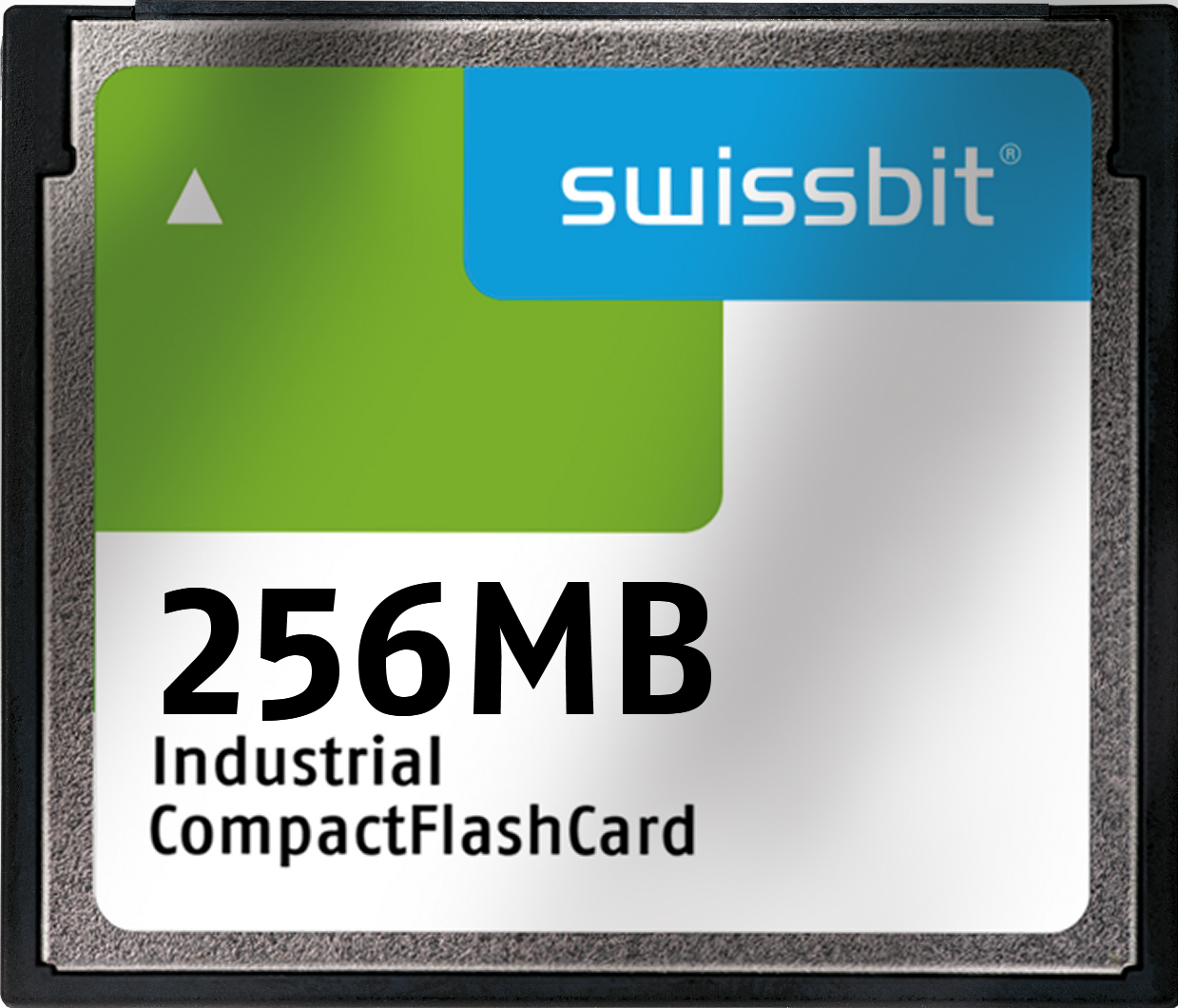

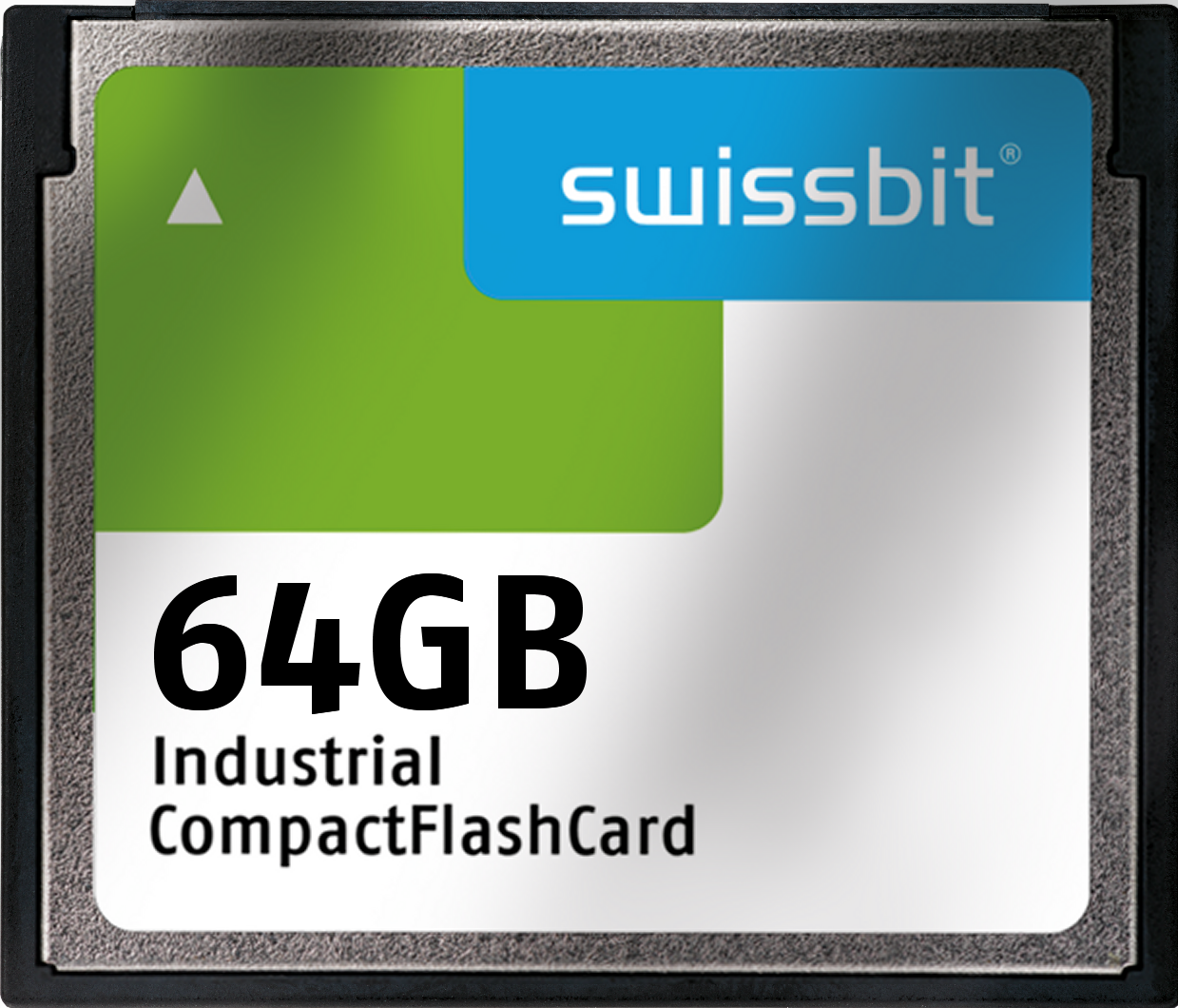

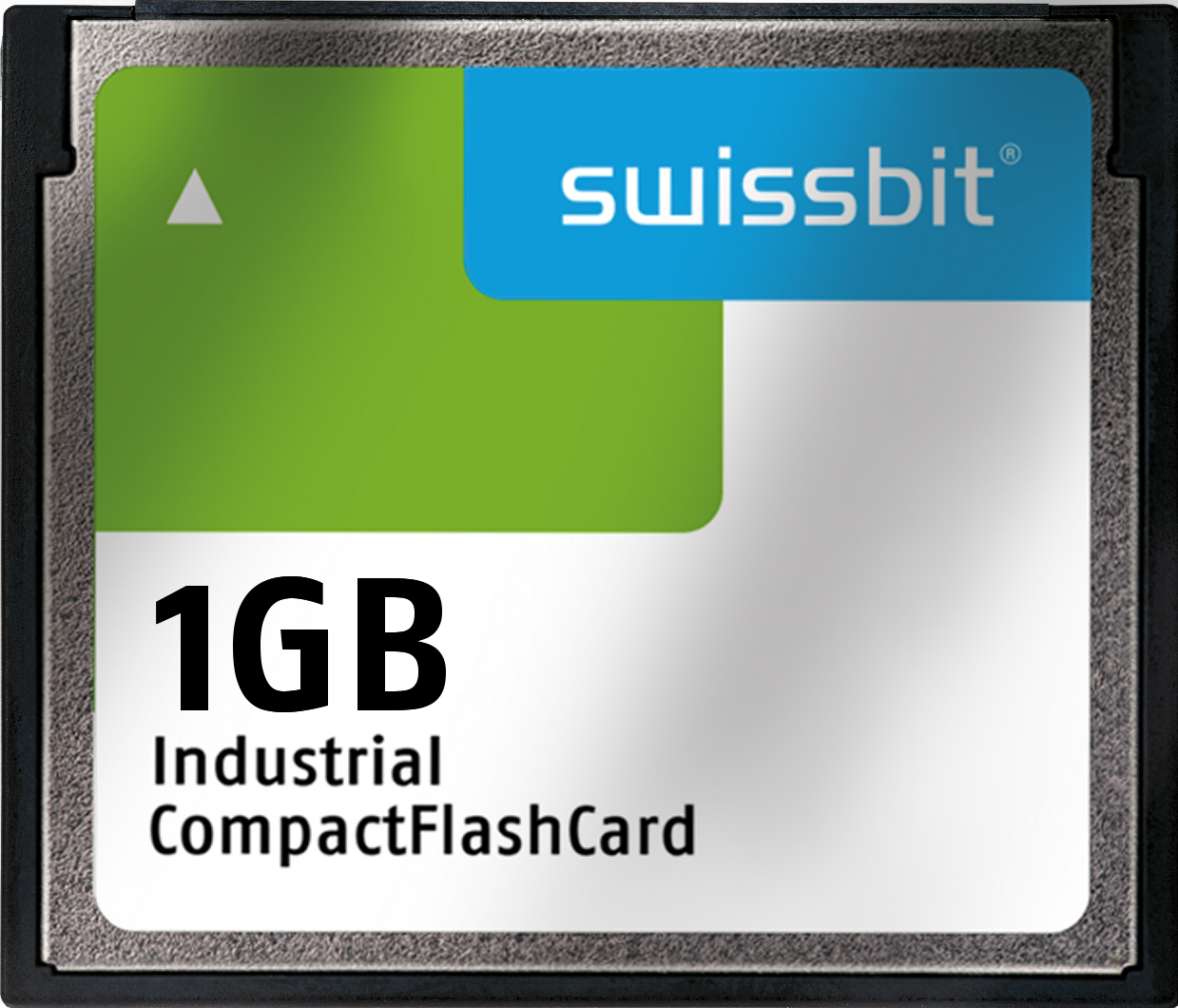

| C-56 | C-500 | C-350 | C-300 Longevity | |
|---|---|---|---|---|
| Series Name | C-56 | C-500 | C-350 | C-300L |
| Standards / Compliance | CFA5.0 / CFA6.1 compatible | CFA5.0 / CFA6.1 compatible | CFA 3.0 / CFA4.1 compatible | CFA 3.0 / CFA4.1 compatible |
| Interface / Protocol | True IDE / PC card | True IDE / PC card | True IDE / PC card | True IDE / PC card |
| Outline Dimensions (LxWxH) | 36.4 x 42.8 x 3.3 mm | 36.4 x 42.8 x 3.3 mm | 36.4 x 42.8 x 3.3 mm | 36.4 x 42.8 x 3.3 mm |
| Flash Type | pSLC | SLC | SLC | SLC |
| Density Range | 4-64 GB | 128 MB-64 GB | 32-256 MB | 128 MB-1 GB |
| Endurance [DWPD] Client WL or Random 128K | max 1.36 | max 3.50 | max 3.4 | max 3.4 |
| Operating Temperature (ambient) | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C | Commercial: 0°C to +70°C
Industrial: -40°C to +85°C |
| Data Retention | 10 years @ life begin
1 year @ life end | 10 years @ life begin
1 year @ life end | 10 years @ life begin
1 year @ life end | 10 years @ life begin
1 year @ life end |
| Storage Temperature | -50°C to +100°C | -50°C to +100°C | -50°C to +100°C | -50°C to +100°C |
| MTBF | ≥ 3,000,000 hours | ≥ 3,000,000 hours | ≥ 3,000,000 hours | ≥ 3,000,000 hours |
| Shock | 1,500 G | 1,500 G | 1,500 G | 1,500 G |
| Vibration | 20 G | 20 G | 20 G | 20 G |
| Humidity | 85 % RH 85°C, 1,000 hrs | 85 % RH 85°C, 1,000 hrs | 85 % RH 85°C, 1,000 hrs | 85 % RH 85°C, 1,000 hrs |
| Voltages | 3.3 V ± 10 %
5 V ± 10 % | 3.3 V ± 10 %
5 V ± 10 % | 3.3 V ± 10 %
5 V ± 10 % | 3.3 V ± 10 %
5 V ± 10 % |
| Average Power | 0.35 W | 0.36 W | 0.37 W | 0.45 W |
| Features & Tools | Page based FTL for m | Page based FTL for m | Proven Power Fail Sa | Proven Power Fail Sa |
| Sequential Read (MB/s) | up to 115 | up to 64 | 20 | up to 38 |
| Sequential Write (MB/s) | up to 66 | up to 44 | 11 | up to 20 |
| Random 4KB Read (IOPS) | up to 5,000 | up to 3,200 | 2,900 | up to 3,350 |
| Random 4KB Write (IOPS) | up to 3,300 | up to 1,900 | 20 | up to 50 |
